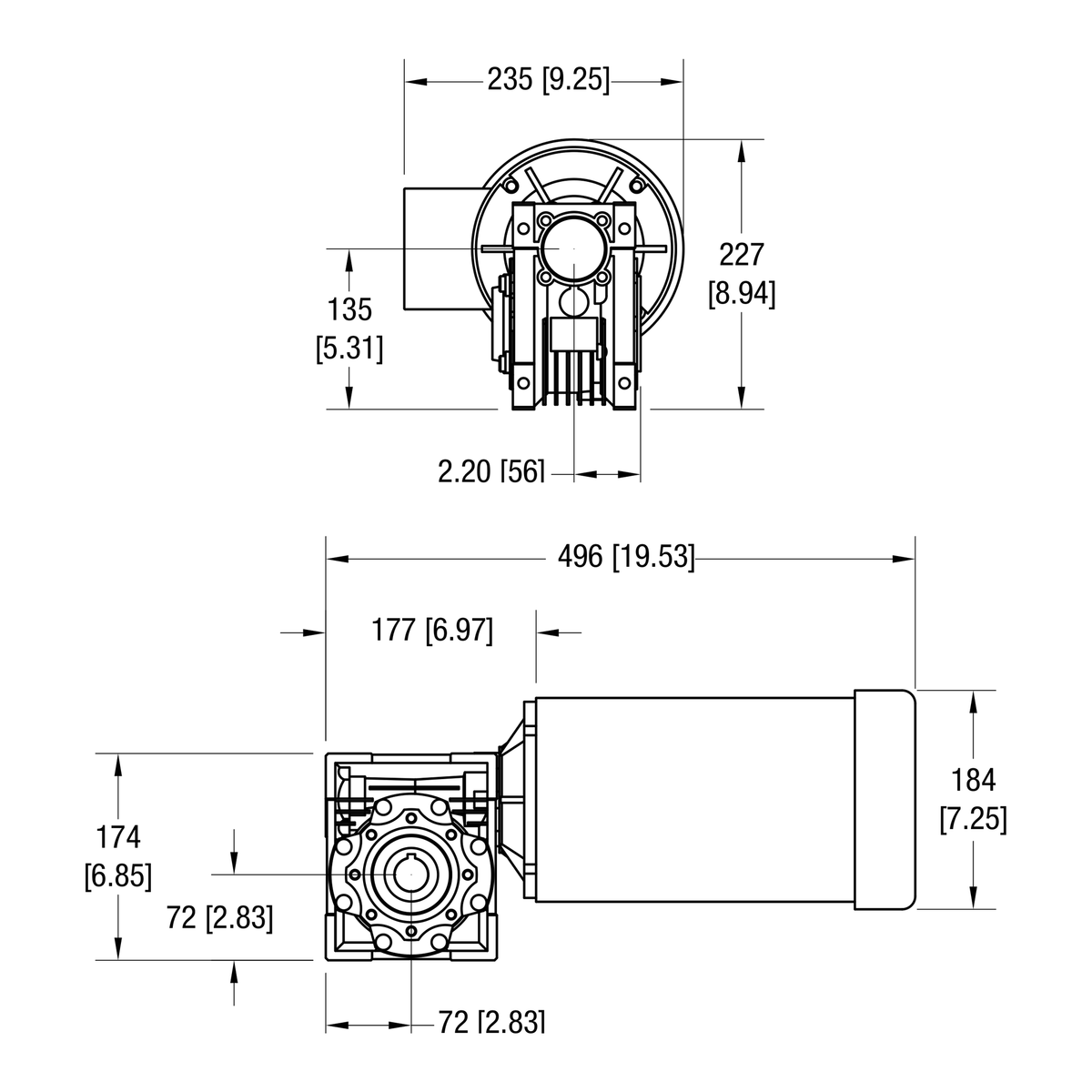

Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M025EH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 1.5 Hp, 69 RPM

SKU: 32M025EH423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,357.00

Heavy load E-Drive 90 Degree VFD Variable Speed gearmotor, 1.5 Hp (1.1kw), 230/460 volt, 3 phase, 15-60 Hz, 69 RPM. Order variable speed controller separately. Uncrated weight = 48lb (22kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 69
  • Gear Ratio 25:1
  • Output Torque (in-lb) 1,068
  • Output Torque (Nm) 121
  • Motor Power (Hp) 1.5 Hp
  • Motor Power (kW) 1.1
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 15-60 Hz
  • Full Load Amps 4.2 / 2.1 A
  • Motor Mount NEMA 56C (0.5 & 1 Hp) / NEMA 145TC (1.5 & 2 Hp)
  • Weight 48 lb
