Home » Dorner 32M013WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 0.75 Hp, 134 RPM

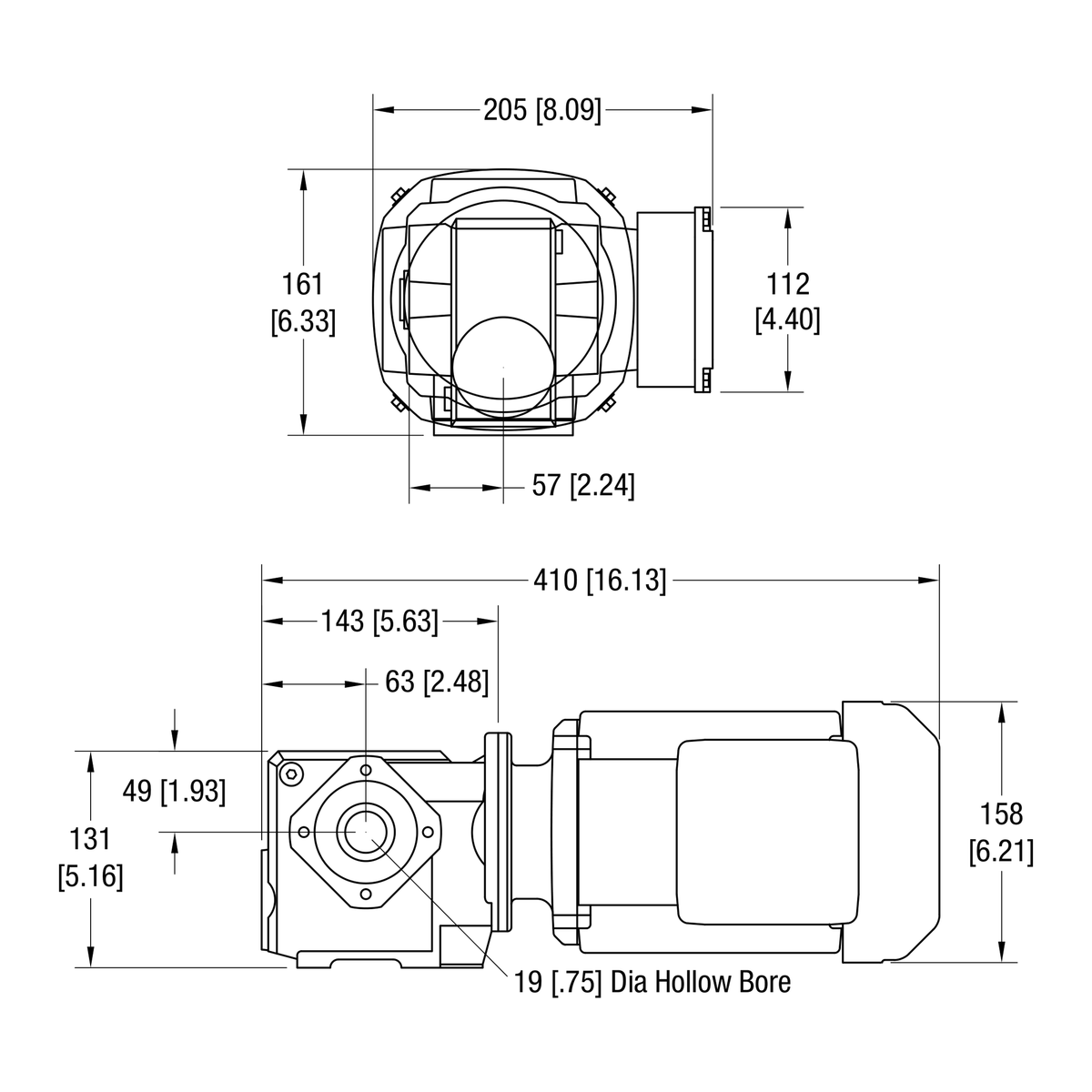

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M013WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 0.75 Hp, 134 RPM

SKU: 32M013WS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,753.00

Standard load SEW 90 Degree Fixed Speed gearmotor, .75 Hp (.55kw), 230/460 volt, 3 phase, 60 Hz, 134 RPM. Uncrated weight = 45lb (20kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 134
  • Output Torque (in-lb) 327
  • Output Torque (Nm) 37
  • Motor Power (Hp) 0.75 Hp
  • Motor Power (kW) 0.55
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 2.50 / 1.25 A
  • Motor Mount SEW SA37
  • Weight 45 lb
