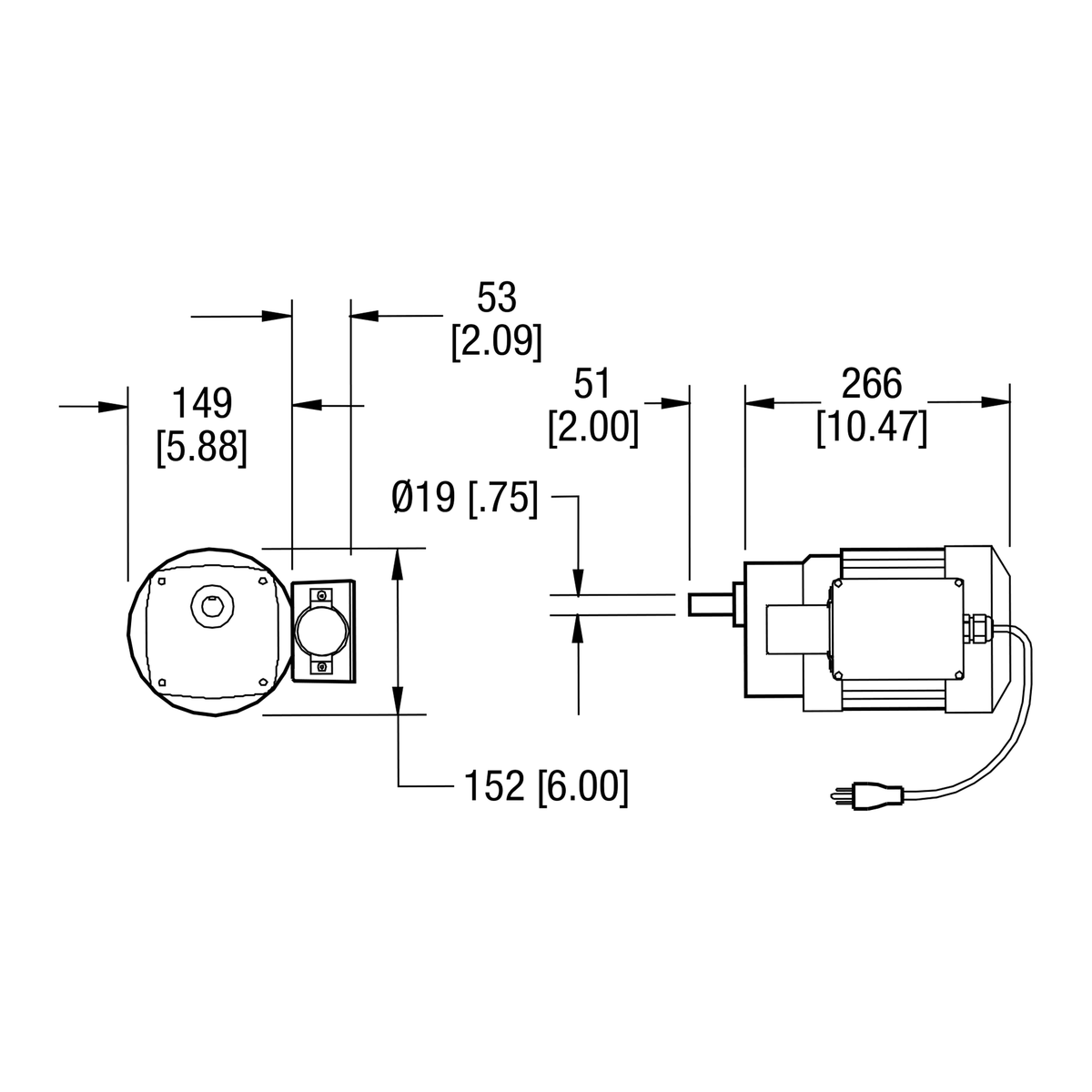

Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner

Dorner 32M010PS411FN Gearmotor, Fixed Speed, Parallel Shaft, 0.33 Hp, 173 RPM

SKU: 32M010PS411FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,007.00

Standard load parallel shaft gearmotor, .33 Hp (.25kW), 115 volt, 1 phase, 60 Hz, 173 RPM. Includes on/off switch, cord, and overload protection. Uncrated weight = 15 lbs. (6.8 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type AC fixed
  • Output Speed (RPM) 173
  • Gear Ratio 10:1
  • Output Torque (in-lb) 108
  • Output Torque (Nm) 12.2
  • Motor Power (Hp) 0.33 Hp
  • Motor Power (kW) 0.25
  • Voltage 115V
  • Phase 1 phase
  • Frequency 60 Hz
  • Full Load Amps 4 A
  • Weight 15 lb
