Home » Dorner 32M010EH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 2 Hp, 173 RPM

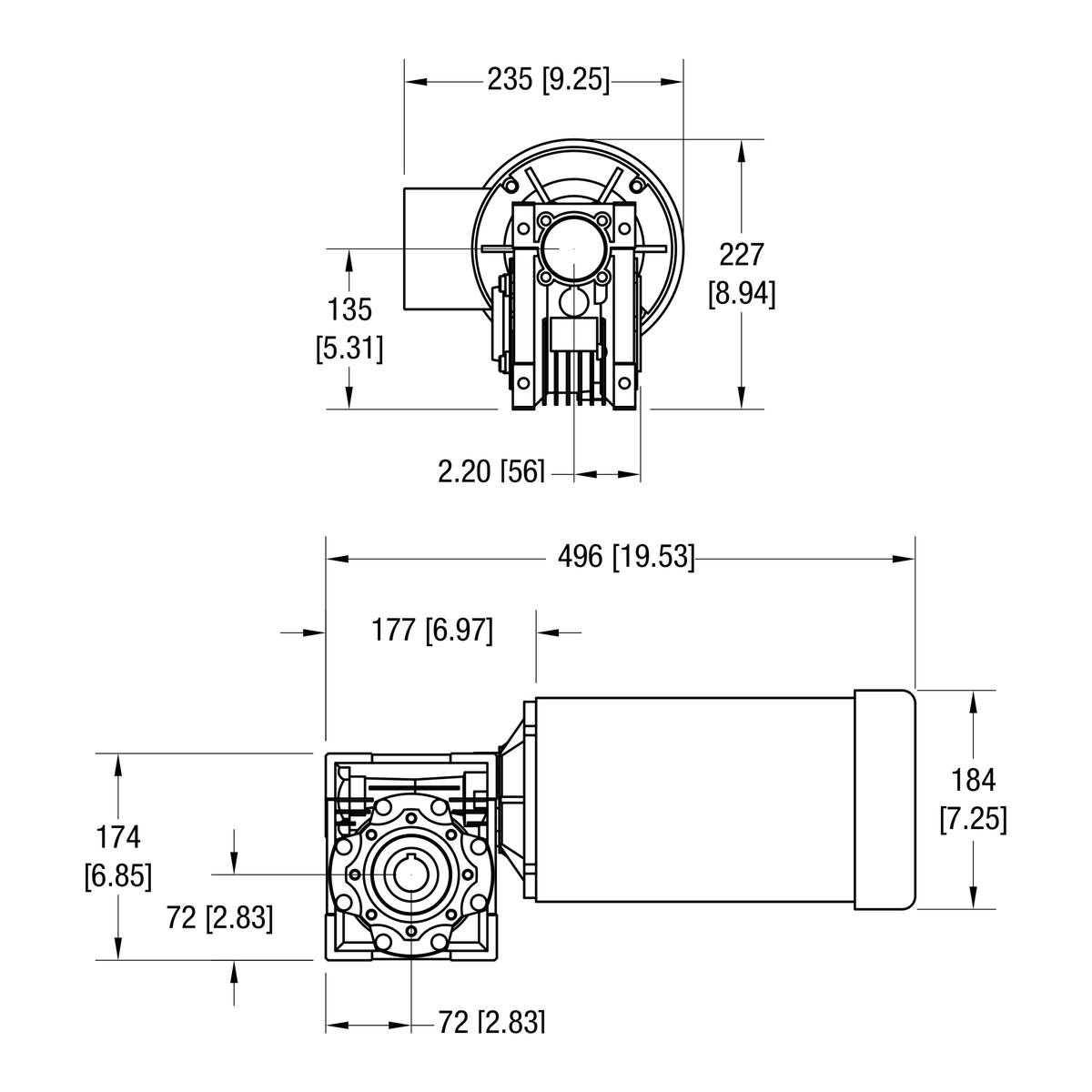

Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M010EH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 2 Hp, 173 RPM

SKU: 32M010EH423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,510.00

Heavy load 90° shaft eDrive™ variable speed VFD gearmotor, 2.0 Hp (1.49kW), 230/460 volt, 3 phase, 6-60 Hz, 173 RPM. Order variable speed controller separately. Uncrated weight = 57 lbs. (25.9 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 173
  • Gear Ratio 10:1
  • Output Torque (in-lb) 636
  • Output Torque (Nm) 72
  • Motor Power (Hp) 2 Hp
  • Motor Power (kW) 1.49
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 15-60 Hz
  • Full Load Amps 5.0 / 2.5 A
  • Motor Mount NEMA 56C (0.5 & 1 Hp) / NEMA 145TC (1.5 & 2 Hp)
  • Weight 57 lb
