Home » Dorner 32M008WH423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 2 Hp, 201 RPM

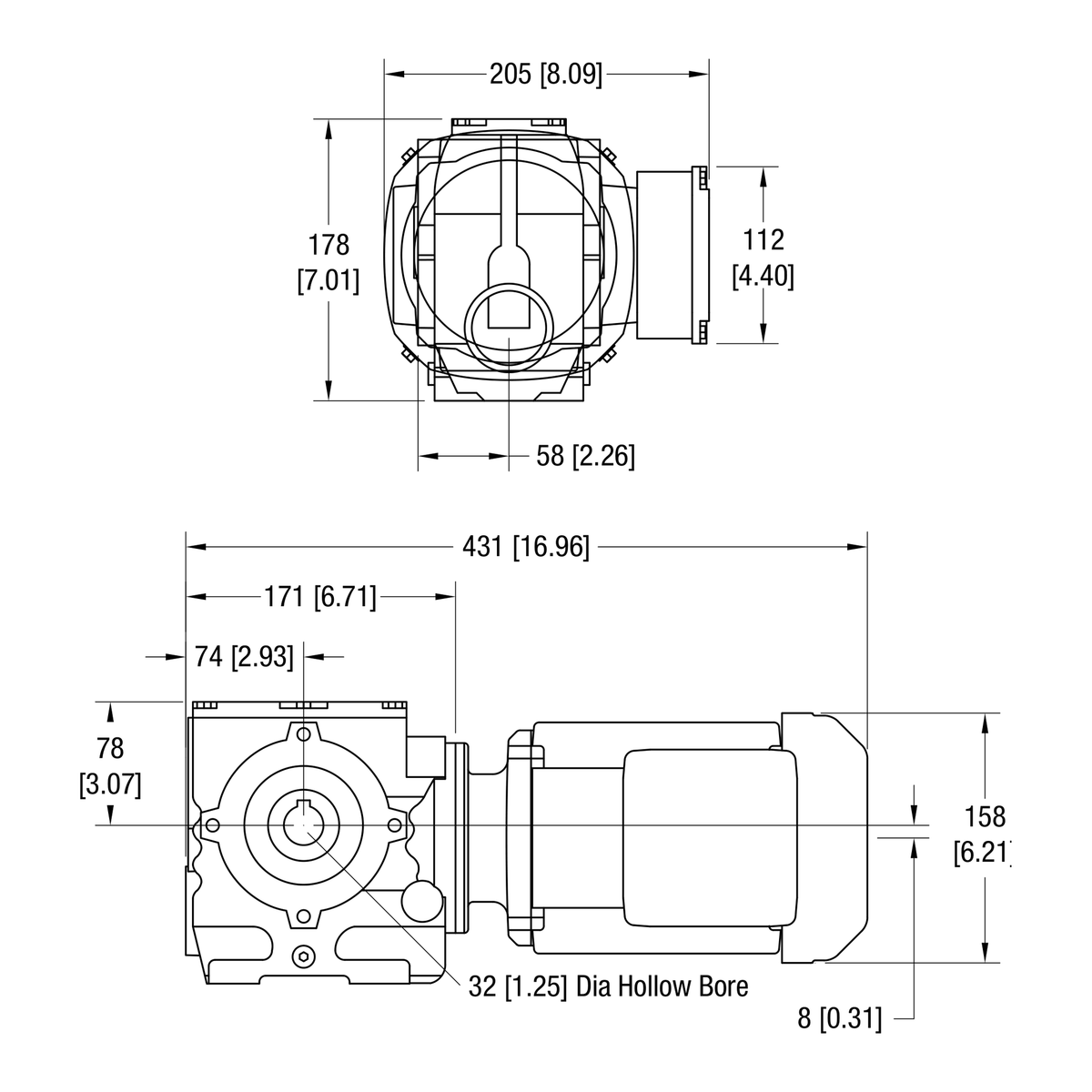

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M008WH423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 2 Hp, 201 RPM

SKU: 32M008WH423EN
Estimated ship time:35 Business Days
Call Us for Volume Discount Availability 704.519.4661
$2,207.00

Heavy load SEW gearmotor 2.0 Hp(1.49 kW), 230/460 volt, 3 phase, 10-60 Hz, 201 RPM. Order 3 phase starter or VFD controller separately. Uncrated weight = 50 lbs. (22.7 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 201
  • Output Torque (in-lb) 575
  • Output Torque (Nm) 65
  • Motor Power (Hp) 2 Hp
  • Motor Power (kW) 1.49
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 5.70 / 2.85 A
  • Motor Mount SEW SA47
  • Weight 50 lb
