Home » Dorner 32M007WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 1 Hp, 264 RPM

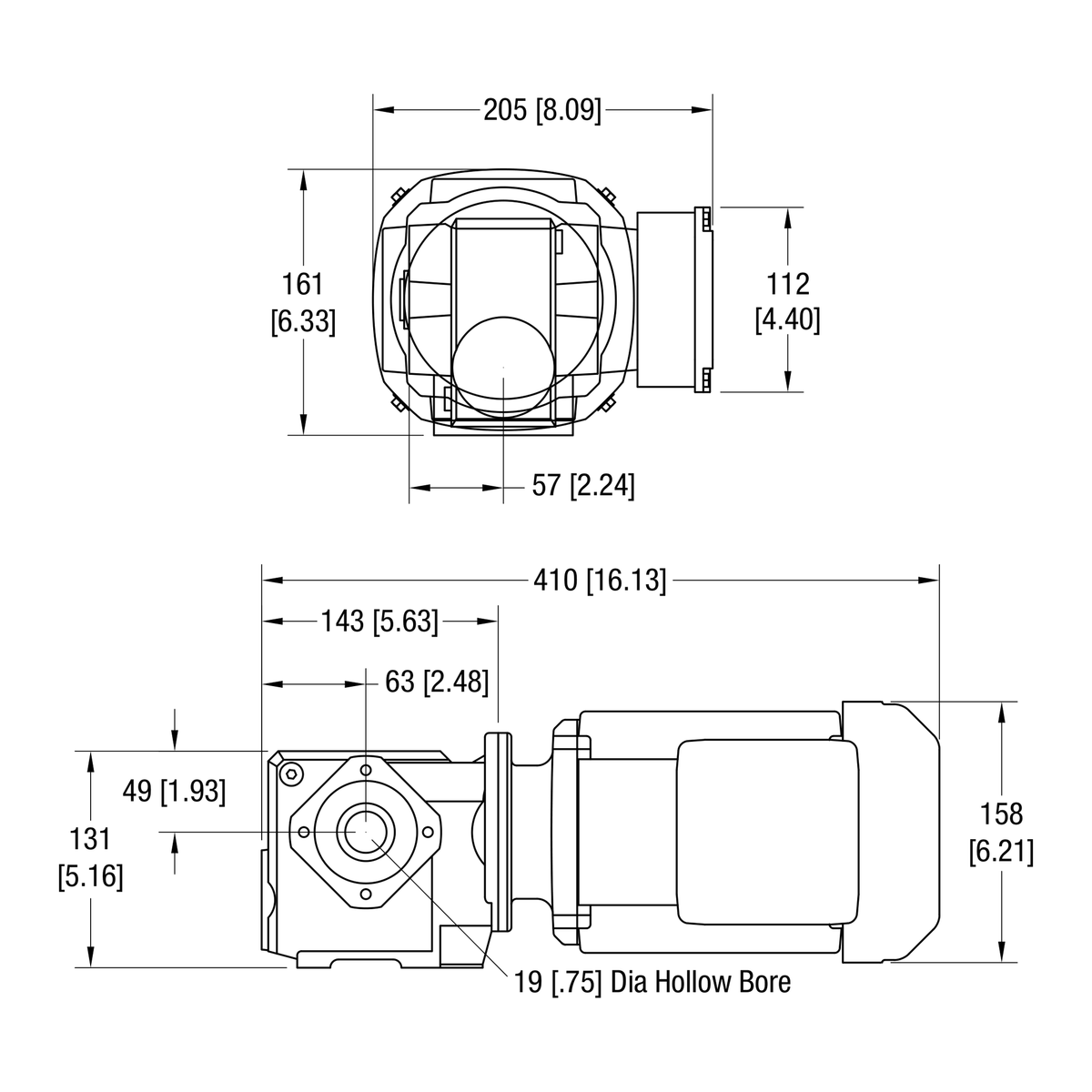

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M007WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 1 Hp, 264 RPM

SKU: 32M007WS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,753.00

Standard load SEW 90 Degree VFD Variable Speed gearmotor, 1 Hp (.74kw), 230/460 volt, 3 phase, 10-60 Hz, 264 RPM. Order variable speed controller separately.
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 264
  • Output Torque (in-lb) 221
  • Output Torque (Nm) 25
  • Motor Power (Hp) 1 Hp
  • Motor Power (kW) 0.74
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 2.90 / 1.44 A
  • Motor Mount SEW SA37
