Home » Dorner 32M005ES423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.5 Hp, 345 RPM

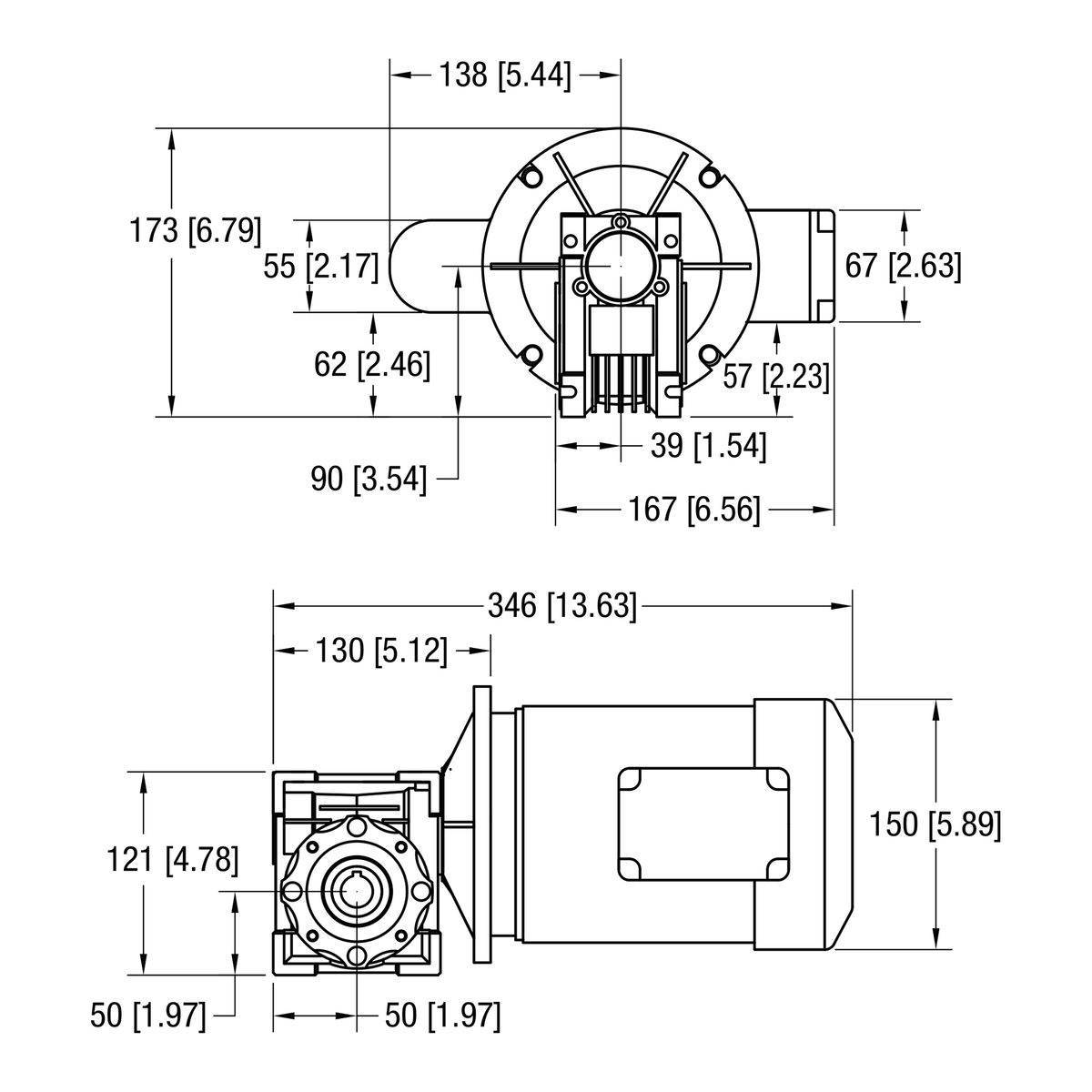

Dorner 90° gearmotor dimensional drawing

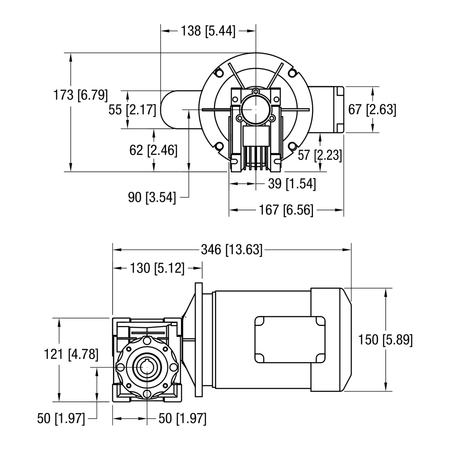

Dorner 90° gearmotor dimensional drawing
Dorner

Dorner 32M005ES423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.5 Hp, 345 RPM

SKU: 32M005ES423FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$948.00

Heavy load E-Drive 90 Degree Fixed Speed gearmotor, .5 Hp (.37kw), 208-230/460 volt, 3 phase, 60 Hz, 345 RPM. Order 3 phase starter separately. Uncrated weight = 20lb (9kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 345
  • Gear Ratio 5:1
  • Output Torque (in-lb) 80
  • Output Torque (Nm) 9
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 208-230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 1.76-1.71 / 1.14 A
  • Motor Mount NEMA 56C
  • Weight 20 lb
