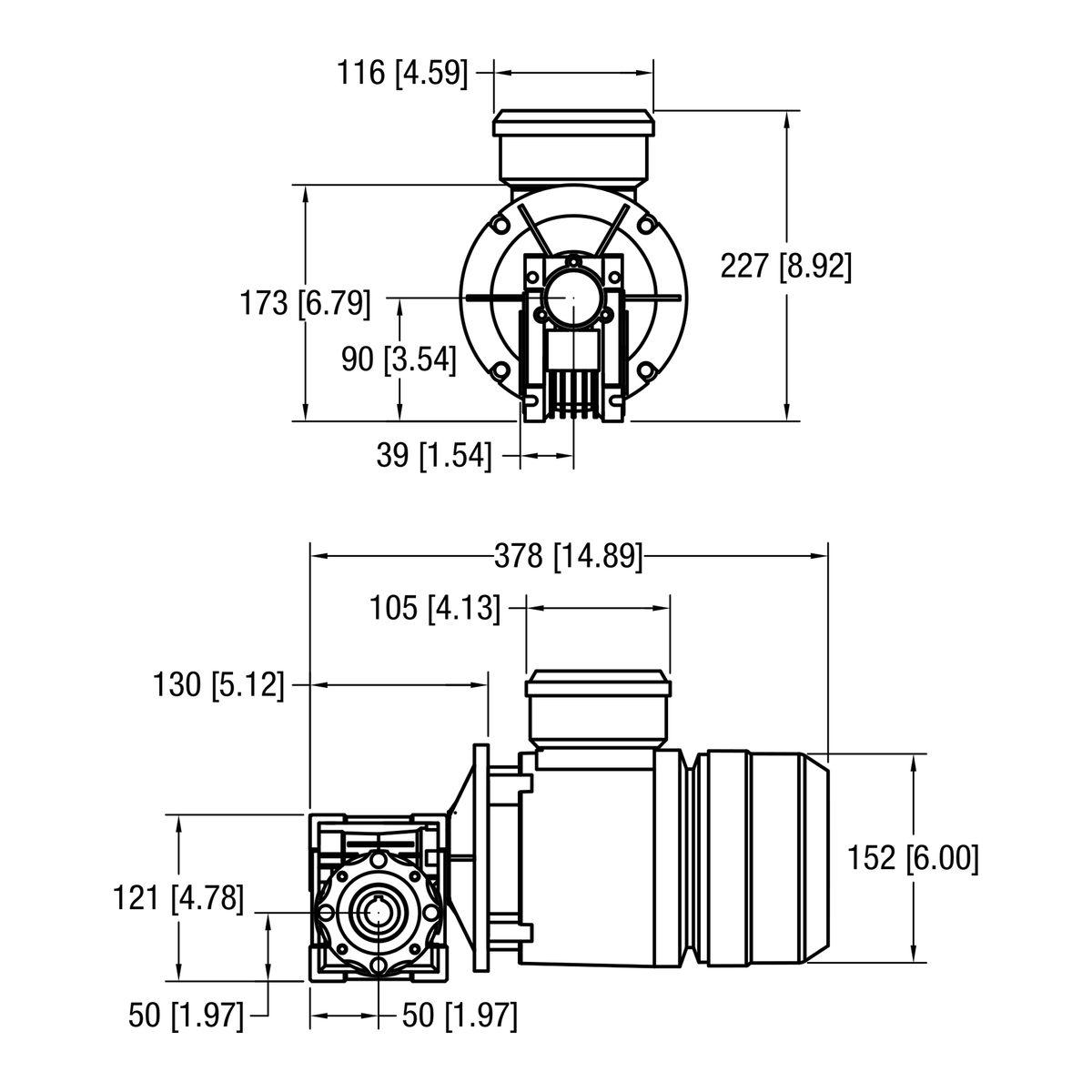

Dorner 90° VFD Rated gearmotor dimensional drawing
Dorner 90° VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M005ES423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.75 Hp, 345 RPM

SKU: 32M005ES423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,027.00

Heavy load E-Drive 90 Degree VFD Variable Speed gearmotor, .75 Hp (.55kw), 230/460 volt, 3 phase, 6-60 Hz, 345 RPM. Order variable speed controller separately. Uncrated weight = 33lb (15kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 345
  • Min. Speed (RPM) 35
  • Gear Ratio 5:1
  • Output Torque (in-lb) 80
  • Output Torque (Nm) 9
  • Motor Power (Hp) 0.75 Hp (derated to 0.5 Hp for full torque)
  • Motor Power (kW) 0.55
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 6-60 Hz
  • Full Load Amps 2.6 / 1.3 A
  • Motor Mount NEMA 56C
  • Weight 33 lb
