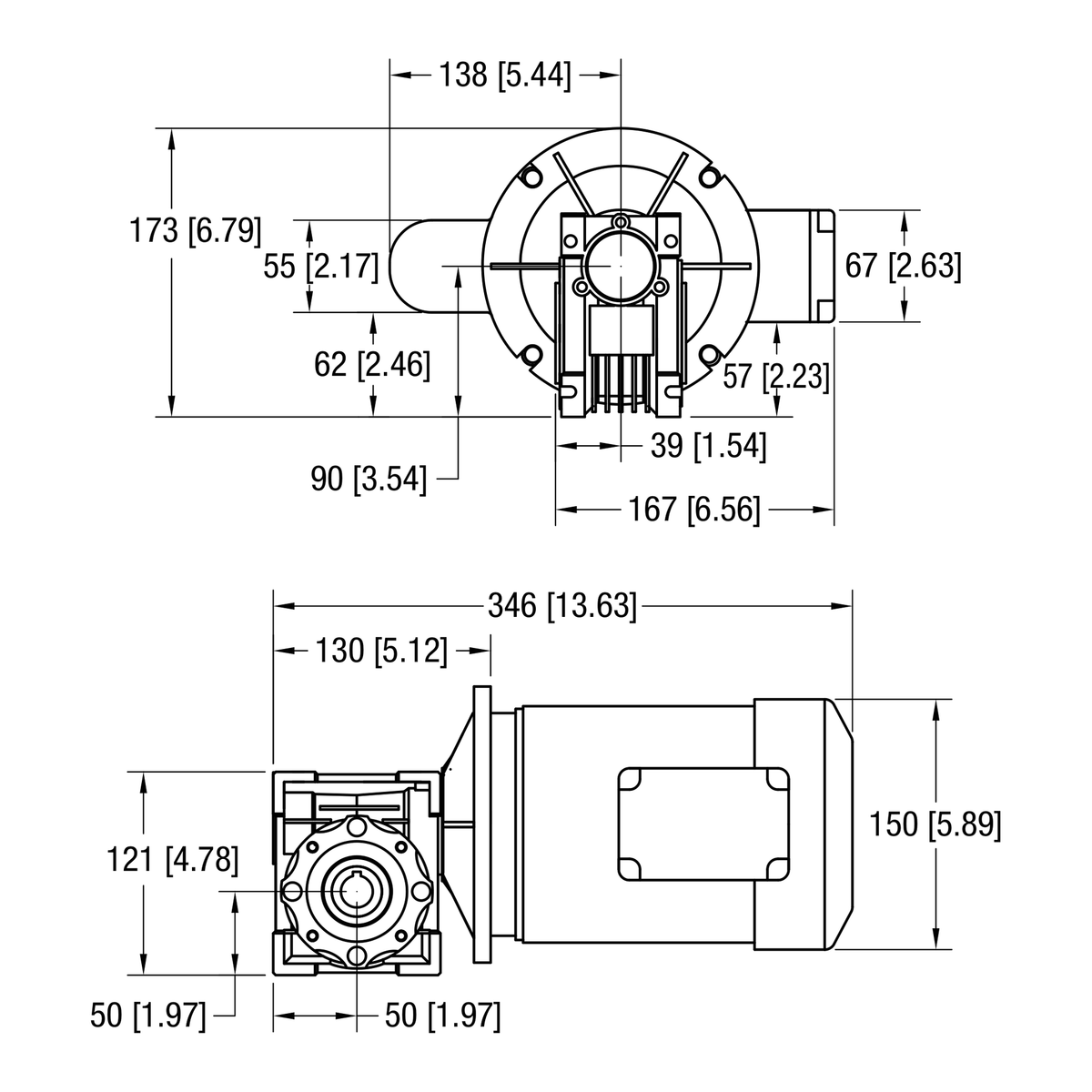

Dorner 90° gearmotor dimensional drawing

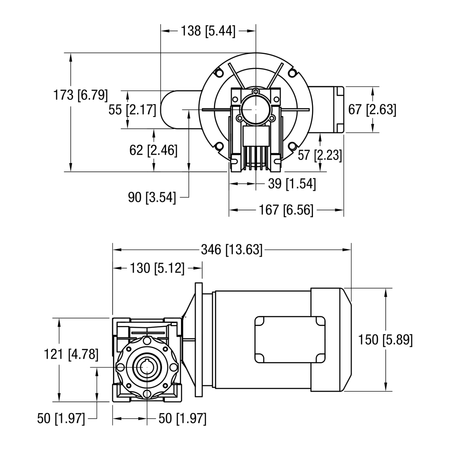

Dorner 90° gearmotor dimensional drawing
Dorner

Dorner 32M005ES223FN Gearmotor, Fixed Speed, 90° Right Angle, 0.75 Hp, 672 RPM

SKU: 32M005ES223FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,027.00

Heavy load E-Drive 90 Degree Fixed Speed gearmotor, .75 Hp (.55kw), 230/460 volt, 3 phase, 60 Hz, 672 RPM. Order 3 phase starter separately. Uncrated weight = 33lb (15kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 672
  • Gear Ratio 5:1
  • Output Torque (in-lb) 33
  • Output Torque (Nm) 3.7
  • Motor Power (Hp) 0.75 Hp
  • Motor Power (kW) 0.55
  • Voltage 208-230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 2.15 / 1.37 A
  • Motor Mount NEMA 56C
  • Weight 33 lb
