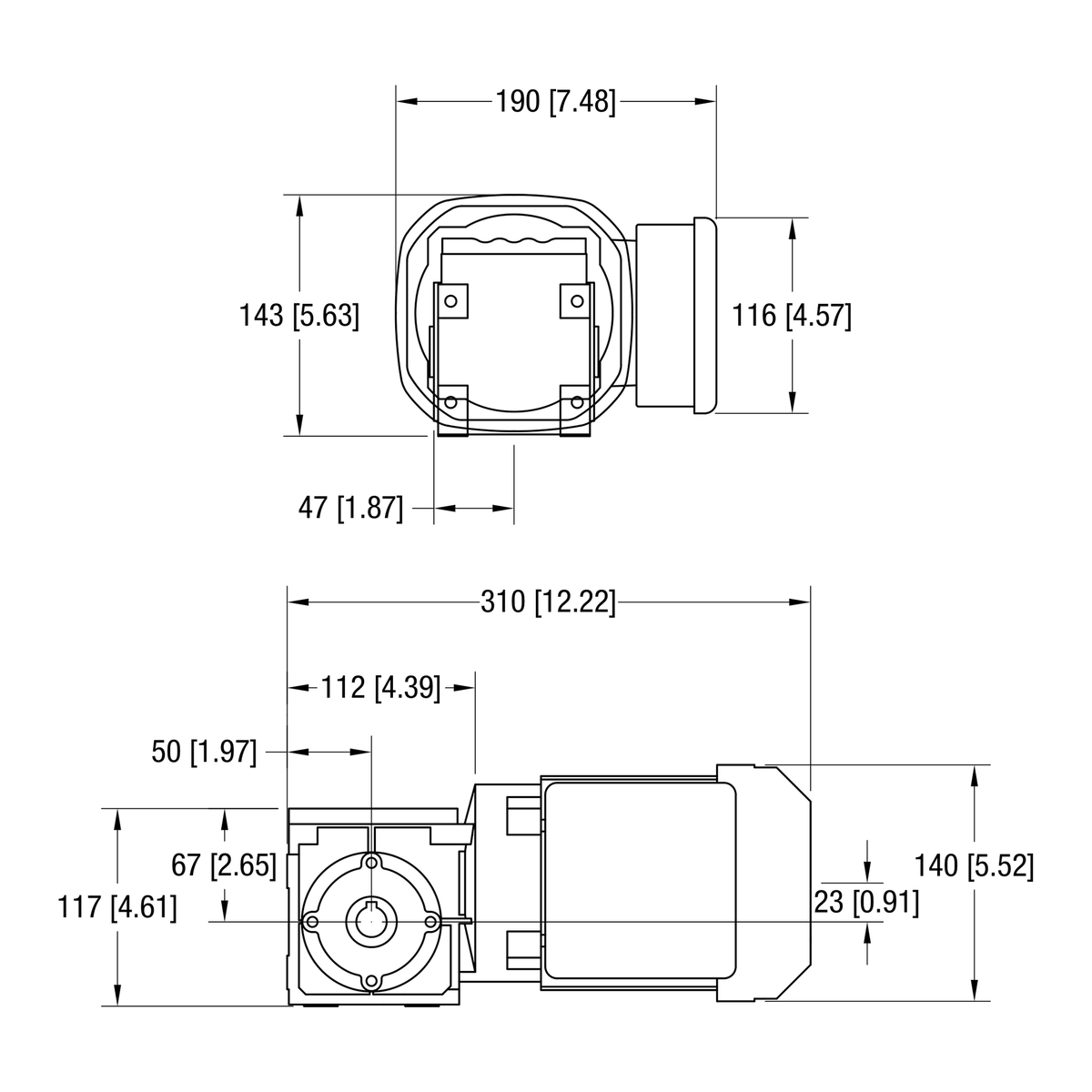

Dorner 90° SEW gearmotor dimensional drawing
Dorner 90° SEW gearmotor dimensional drawing
Dorner

Dorner 22M039WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 0.25 Hp, 46 RPM

SKU: 22M039WS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,078.00

Standard load SEW 90 Degree Fixed Speed gearmotor, .25 Hp (.18kw), 230/460 volt, 3 phase, 60 Hz, 46 RPM. Order 3 phase starter separately. Uncrated weight = 20lb (9kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 46
  • Min. Speed (RPM) 8
  • Gear Ratio 39:1
  • Output Torque (in-lb) 203
  • Output Torque (Nm) 22.9
  • Motor Power (Hp) 0.25 Hp
  • Motor Power (kW) 0.18
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 0.89 / 0.44 A
  • Motor Mount SEW WA20
  • Weight 20 lb
