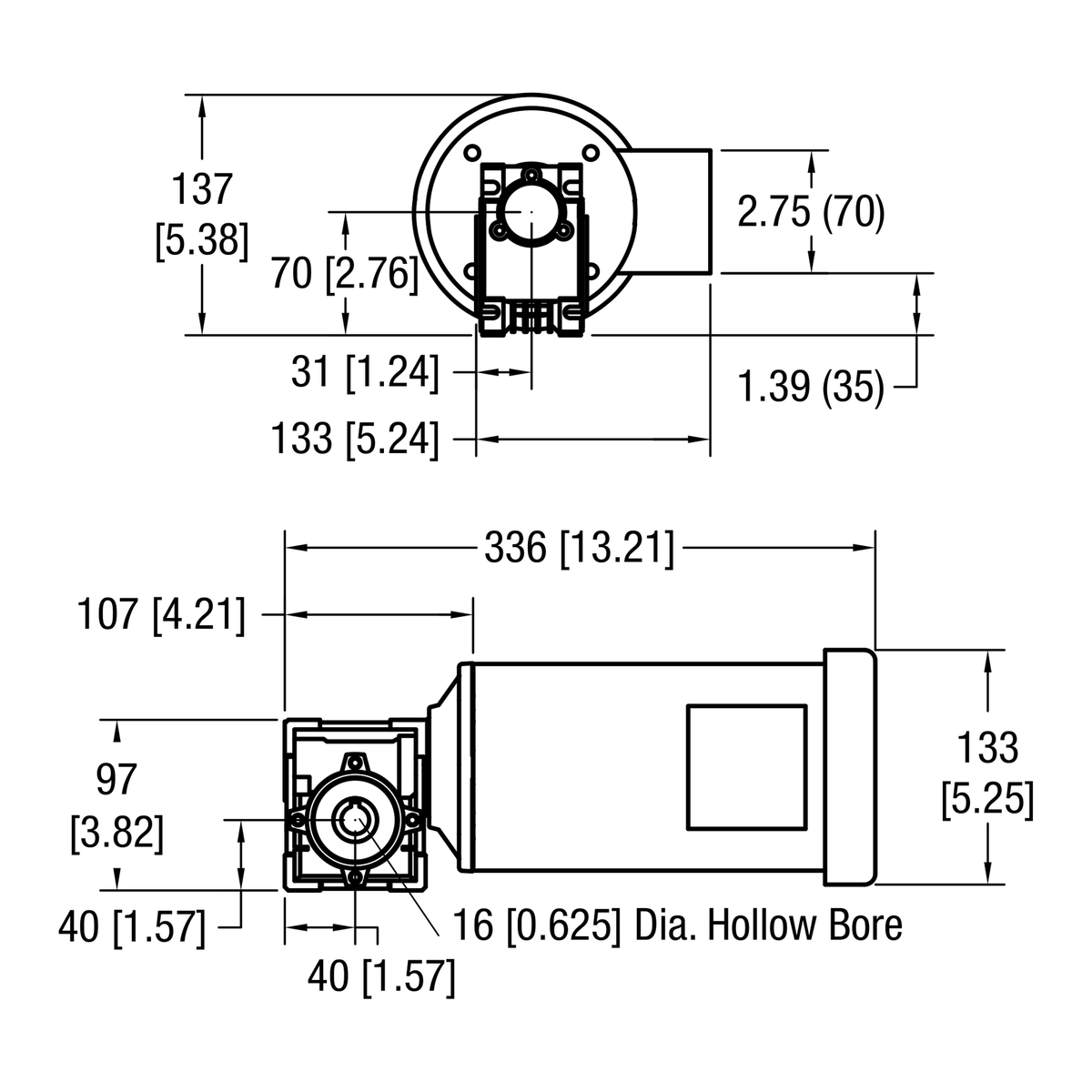

Dorner 90° NEMA C-Face gearmotor dimensional drawing
Dorner 90° NEMA C-Face gearmotor dimensional drawing
Dorner

Dorner 22M020ESD3DEN Gearmotor, DC Variable Speed, 90° Right Angle, 0.33 Hp, 125 RPM

SKU: 22M020ESD3DEN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$937.00

90° shaft eDrive™ variable speed DC gearmotor,.33 Hp (.25kW), 130 volt DC, 125 RPM. Order variable speed controller separately. Uncrated weight = 18 lbs. (8.1 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type Brushed DC
  • Output Speed (RPM) 125
  • Gear Ratio 20:1
  • Output Torque (in-lb) 151
  • Output Torque (Nm) 17.1
  • Motor Power (Hp) 0.33 Hp
  • Motor Power (kW) 0.25
  • Voltage 130V DC
  • Phase DC
  • Full Load Amps 2.3 A
  • Motor Mount NEMA 42 CZ
  • Weight 18 lb
