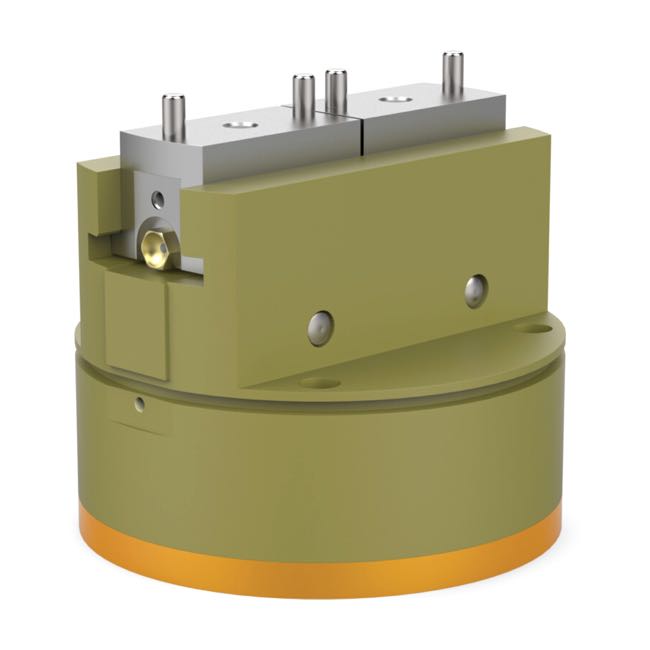

14002P-P-RE-C 2 Jaw Precision Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$2,481.00
Couldn't load pickup availability
DESTACO 14002P-P — Technical Specifications
| Specification | Value |
|---|---|
| Model | 14002P-P (Standard Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 6232 N [1400 lb] |
| Grip Force (F0+R) at 0 bar | 2305 N [518 lb] |
| Total Stroke | 26 mm [1.02 in] |
| Weight | 4.2 kg [9.26 lb] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 220 cm³ [13.43 in³] |
| Temperature Range (Buna-N) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton®) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.16 s |
| Repeatability | ±0.02 mm [±0.001 in] |
DESTACO 14002P-P-C — Technical Specifications
| Specification | Value |
|---|---|
| Model | 14002P-P-C (Extended Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 4031 N [906 lb] |
| Grip Force (F0+R) at 0 bar | 1490 N [335 lb] |
| Total Stroke | 40 mm [1.57 in] |
| Weight | 8.74 kg [19.26 lb] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 494 cm³ [30.15 in³] |
| Temperature Range (Buna-N) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton®) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.29 s |
| Repeatability | ±0.02 mm [±0.001 in] |
