020-013-031DE Hydraulic Thru Hole Ram, 5/8Inch Id
Call Us for Volume Discount Availability 704.519.4661
Regular price
$744.38
Couldn't load pickup availability

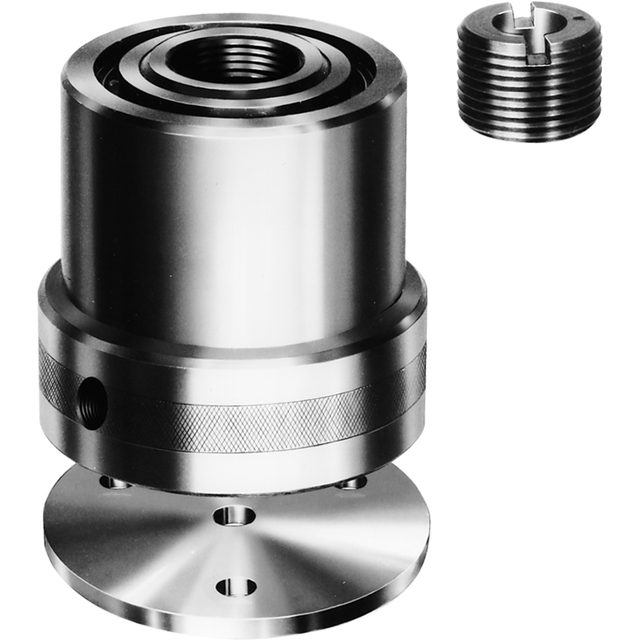

020-013-031DE Thru-Hole Hydraulic Ram. Largest model in the set for maximum clamping force; ships with thru-hole insert 705634. Excellent where you need to push/pull through the hollow piston and translate power into tight spaces. (Max input pressure 3,500 PSIG.)
020-013-031DE — Technical Specifications
| Specification | Value |
|---|---|
| RAM I.D. | 0.63 in |
| Port | SAE #4 |
| Stroke | 0.63 in |
| Force @ 3,000 PSIG | 12,066 lb |
| Oil Displacement | 2.51 cu in |
| Dimensions (A × B × C) | 3.25 × 3.00 × 3.63 in |
| Thru-Hole Insert (supplied) | 705634 |
