DESTACO 020-011-011DE HYD. THRU HOLE RAM, 3/8IN ID
DESTACO 020-011-011DE HYD. THRU HOLE RAM, 3/8IN ID
DESTACO

020-012-021DE HYD. THRU HOLE RAM, 1/2IN ID

SKU: 020-012-021DE
Call Us for Volume Discount Availability 704.519.4661
$716.36

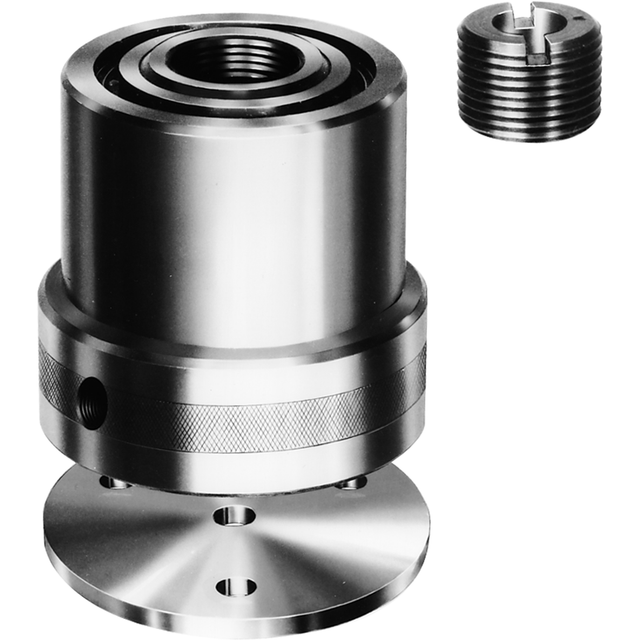

020-012-021DE Thru-Hole Hydraulic Ram. Mid-size single-acting unit delivering higher loads with simple plumbing. Supplied with thru-hole insert 705512; ideal for pushing or pulling through the hollow piston to transmit force to remote locations. (Max input pressure 3,500 PSIG.)

020-012-021DE — Technical Specifications
Specification Value
RAM I.D. 0.50 in
Port SAE #4
Stroke 0.50 in
Force @ 3,000 PSIG 8,100 lb
Oil Displacement 1.35 cu in
Dimensions (A × B × C) 3.00 × 2.63 × 2.88 in
Thru-Hole Insert (supplied) 705512
