020-011-011DE HYD. THRU HOLE RAM, 3/8IN ID
Call Us for Volume Discount Availability 704.519.4661
Regular price
$565.99
Couldn't load pickup availability

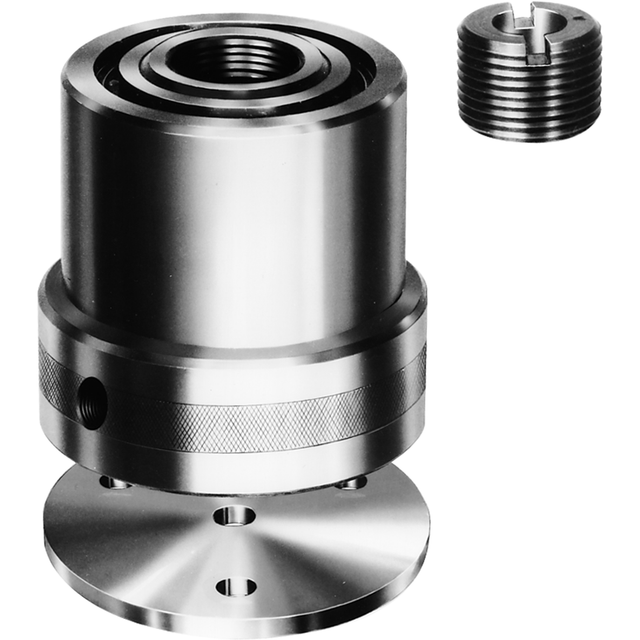

020-011-011DE Thru-Hole Hydraulic Ram. Compact single-acting cylinder with hardened piston/rod and larger piston area for higher clamping force. Ships with thru-hole insert 705384; often used to convert manual strap clamps to hydraulic actuation with a longer bolt. (Max input pressure 3,500 PSIG.)
020-011-011DE — Technical Specifications
| Specification | Value |
|---|---|
| RAM I.D. | 0.38 in |
| Port | SAE #2 |
| Stroke | 0.38 in |
| Force @ 3,000 PSIG | 4,380 lb |
| Oil Displacement | 0.547 cu in |
| Dimensions (A × B × C) | 2.13 × 1.88 × 2.25 in |
| Thru-Hole Insert (supplied) | 705384 |
