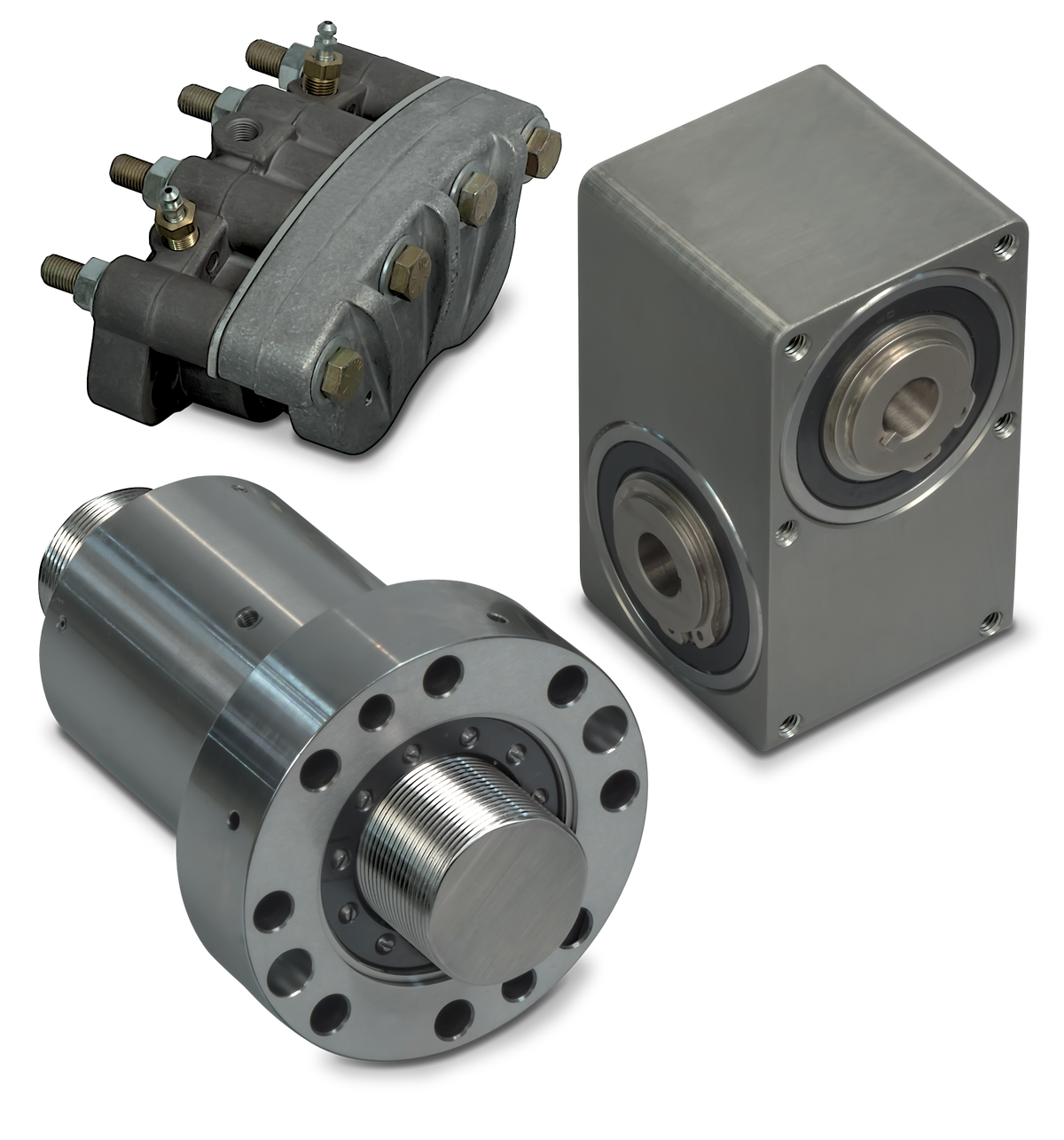

Tolomatic-Power Transmission
Tolomatic power transmission products deliver over 60 years of proven performance across industrial applications. From precision right-angle gearboxes to high-torque brakes and clutches, these components provide reliable power transfer, motion control, and stopping power for demanding industrial environments.
Right Angle Gearboxes
Slide-Rite® Gearboxes
Compact and standard sizes available in multiple ratios (1:1, 2:1, 3:2). Delivers torque up to 2,480 in-lbs with proven reliability. Small gearbox (SGB) offers the smallest footprint for space-constrained applications.
Slide-Rite® CR Corrosion Resistant
Washdown-ready gearboxes with corrosion-resistant components. Available in compact and standard sizes with 1:1 ratio. Maximum torque up to 1,984 in-lbs for food processing and wet environments.
Float-a-Shaft® Compact Gearboxes
Space-saving 1:1 ratio design available with high-torque roller bearings (440 in-lbs) or low-torque journal bearings (100 in-lbs). Ideal for tight installation spaces.
Float-a-Shaft® Standard Gearboxes
Available in multiple ratios (1:1, 2:1, 2.5:1, 3:2) with roller or journal bearing options. Maximum torque up to 1,100 in-lbs. Versatile solution for various speed and torque requirements.
Industrial Disc Brakes
Pneumatic Caliper Brakes
P10, P20, and P220 series offering dynamic torque from 520 to 2,000 in-lbs at 100 PSI. Clean, responsive braking for automated systems without hydraulic fluid.
Hydraulic Disc Brakes
H10 through H960 series delivering dynamic torque from 5,000 to 66,000 in-lbs at 1,000 PSI. Available in aluminum, cast iron, and ductile iron construction for heavy-duty applications.
Mechanical Disc Brakes
ME10, ME20, ME220, and MB series providing dynamic torque from 8,500 to 33,700 in-lbs. Simple, reliable braking without air or hydraulic power requirements.
Spring Applied Disc Brakes
FS20 through FS595 series with static torque from 3,250 to 62,000 in-lbs. Fail-safe design applies brake when power is lost. Available in aluminum and ductile iron.
Hydraulic/Mechanical Combo Brakes
H/ME20 and H/ME220 series offering dual actuation options. Maximum dynamic torque up to 31,000 in-lbs for flexible installation and operation.
Ventilated Disc Combinations
Specialized tension control brake combinations with enhanced heat dissipation. Designed for high-tension applications requiring efficient thermal management.
Pneumatic Cone Clutches
1207 & 1307D Series
Compact clutches with torque ranges suited for light to medium-duty applications. 1207 series offers 10x heat dissipation over 1307D with up to 160 BTU/hour at 1,800 RPM.
1208 & 1308D Series
Medium-duty clutches with torque ranges from 35 to 635 in-lbs. 1208 series provides enhanced heat dissipation at 750 BTU/hour for higher-cycle applications.
1209 & 1309C Series
Heavy-duty clutches delivering torque from 210 to 1,000 in-lbs. 1209 series features superior heat dissipation at 1,600 BTU/hour for demanding applications.
Roller Screws & Brake Accessories
Planetary Roller Screws
Precision-ground roller screws providing higher force capability, efficient operation, and extended machine life. Superior alternative to ball screws for high-load applications.
Hub & Disc Assemblies
Fixed hub assemblies available in 6-5/16" through 16" disc sizes. Options include QD bushing compatibility and one-piece designs for various brake applications.
Quick Disconnect Components
QD bushings and hubs for easy installation and maintenance. Compatible with pneumatic, hydraulic, mechanical, and spring-applied disc brakes.
Brake Discs & Intensifiers
Blank discs and pre-machined discs with bolt circles available in multiple sizes. Intensifier kits increase output pressure for maximum torque capability.
Product Selection Guide
Gearbox Selection
Choose based on ratio requirements, torque capacity, and environmental conditions. CR series for washdown environments, Float-a-Shaft for compact installations, Slide-Rite for general applications.
Brake Type Selection
Pneumatic for clean operation, hydraulic for high torque, mechanical for simple installations, spring-applied for fail-safe requirements. Match torque rating to application needs.
Clutch Applications
Select based on torque requirements and duty cycle. Higher series numbers (1209) for heavy-duty applications with frequent engagement. Heat dissipation critical for high-cycle operations.
