Z-071-D / Z-081-D — Stainless Steel Washdown Mounting Brackets

SKU: Z-071-D-Z-081-D
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

Z-071-D (hex flat up) and Z-081-D (hex point up) are stainless steel mounting brackets designed for washdown applications with Itoh Denki Power Moller® DC rollers. These brackets are the standard mounting solution for the PM320HS and the required bracket for waterproof (JH shaft) option configurations on PM486 models.

Use 1 bracket with matchmark facing out. For PM320HS installations, pair with the AM-32HS-M5 opposite cable side bracket.

Key Details

  • Z-071-D: Hex flat up orientation
  • Z-081-D: Hex point up orientation
  • Stainless steel construction for washdown environments
  • Matchmark notch for correct installation orientation

Installation

  • 1 required for FE models (standard or waterproof configurations)
  • 2 required for PM486FS, PM486FH, and PM486FP (with JH waterproof shaft)
  • For PM320HS: use with AM-32HS-M5 opposite cable side bracket

Compatible Rollers

  • PM320HS (standard bracket)
  • All FE models (waterproof option)
  • PM486FS (waterproof option)
  • PM486FH (waterproof option)
  • PM486FP (JH shaft / waterproof option)

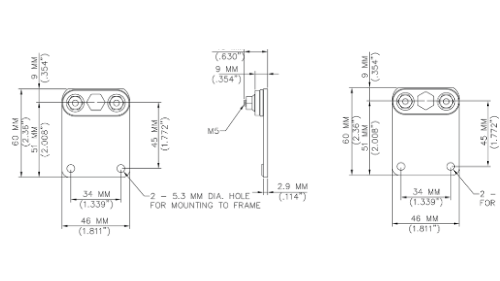

Dimensions

  • Height: 65 mm [2.56"]
  • Width: 43 mm [1.69"]
  • Depth: 35 mm [1.38"]
