Telco Sensors

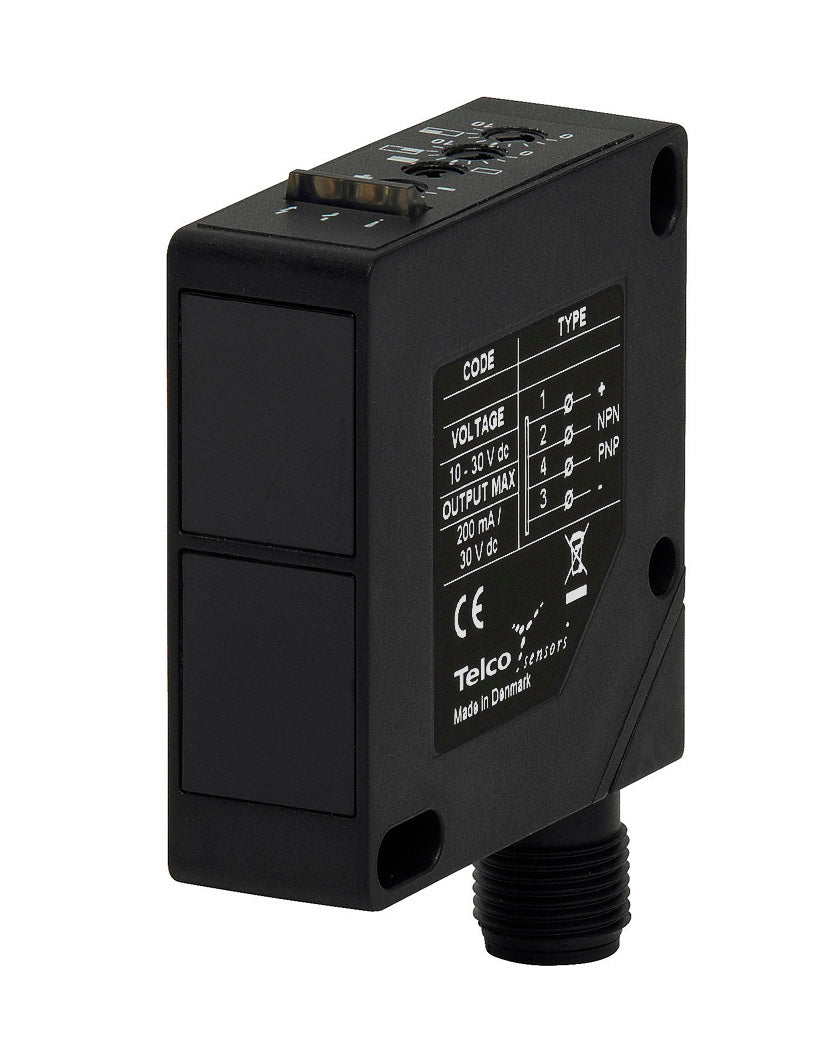

Telco SPR2645TJ

SKU: SPR2645TJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$159.15

SPACEPAK RECEIVER, 10-30VDC, NPN/PNP, 4P M12 QD, ON/OFF DELAY
  • Sensing Range 0–45 m
  • Ambient Light Immunity 25,000 lux at 5° incidence
  • Hysteresis 20–30%
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Features Timer Delay
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Output State NC, NO
  • Maximum Load Current 200 mA
  • Maximum Current Consumption 65 mA
  • Controls Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable, Through Beam
  • Housing 17 × 50 × 50 mm Rectangular
  • Housing Material ABS, Polycarbonate
  • Connection M12 Plug
  • Pin Count 4
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +55 °C
