Telco SMR9471TP15

SKU: SMR9471TP15
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$331.73

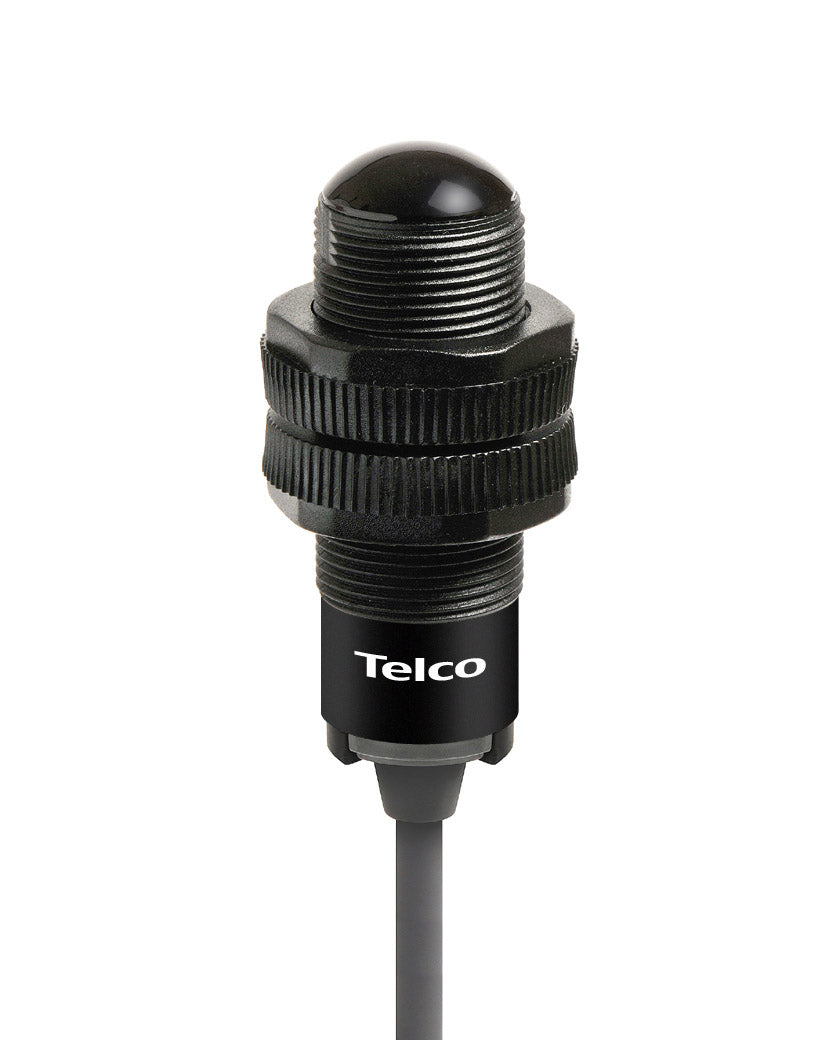

RECEIVER, PLASTIC, M18, DC, SOLID STATE RELAY OUTPUT, WIRE SELECTABLE NO/NC, CHANNEL 1, WITH 15M CABLE
  • Sensing Range 0–70 m
  • Response Time 25 ms
  • Switching Frequency 20 hz
  • Channel Count 1
  • Supply Voltage 10 to 30 V DC
  • Output Solid-State Relay
  • Output State NC, NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 40 mA
  • Controls Light Dark Selection
  • Operating Modes Dark Operated, Light Operated, Selectable, Through Beam
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection Integral Cable
  • Cable Length 15 m
  • Cable Material PVC
  • Protection Rating IP69K
  • Operating Temperature Range −20 to +60 °C
