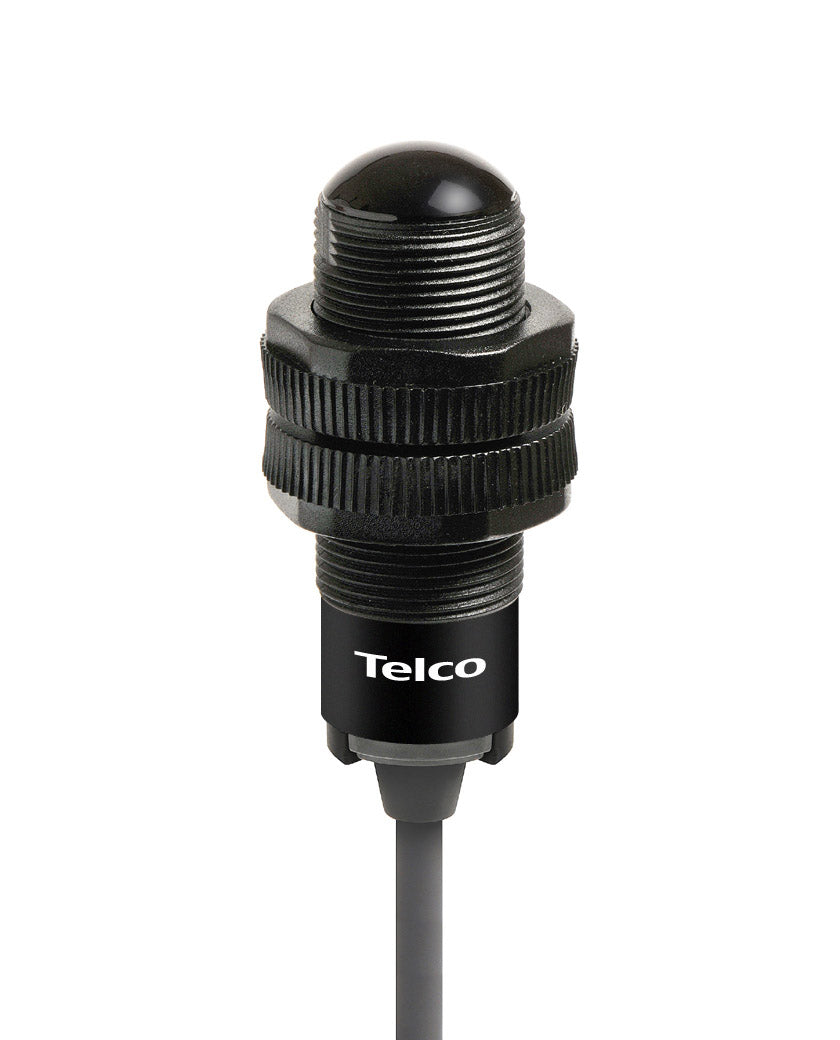

Telco SMR9370TP15

SKU: SMR9370TP15
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$313.46

RECEIVER, PLASTIC, M18, DC, PNP, NO, DARK OPERATED, 15M CABLE
  • Sensing Range 0–70 m
  • Response Time 25 ms
  • Switching Frequency 20 hz
  • Selectable Channels 1 to 4
  • Supply Voltage 10 to 30 V DC
  • Output PNP
  • Output State NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 40 mA
  • Operating Modes Dark Operated, Through Beam
  • Housing M18 × 1
  • Housing Material Polycarbonate
  • Connection Integral Cable
  • Cable Length 15 m
  • Cable Material PVC
  • Protection Rating IP69K
  • Operating Temperature Range −20 to +60 °C
