Telco SMR3306TBJ

SKU: SMR3306TBJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$202.17

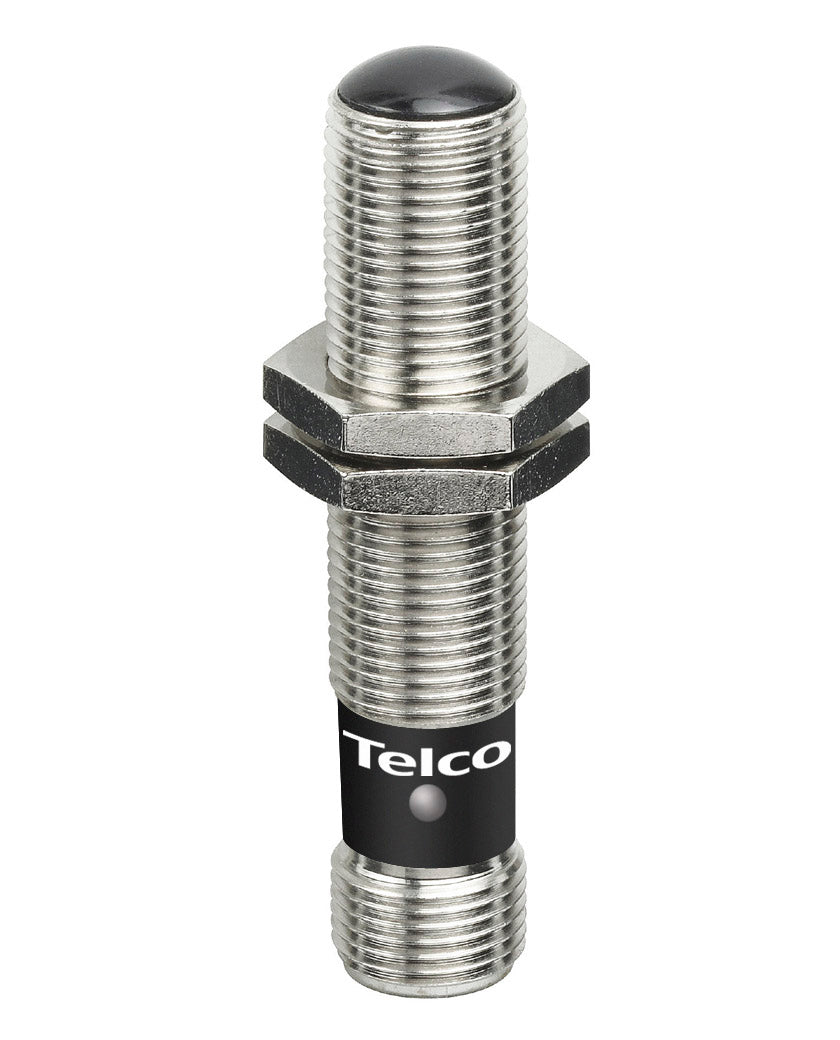

RECEIVER, NP BRASS, PNP, NO, DARK OPERATED, 4P M12 QD
  • Sensing Range 0–6 m
  • Ambient Light Immunity 35,000 lux at 5° incidence
  • Hysteresis Approximately 25%
  • Response Time <4 ms on / <6 ms off
  • Switching Frequency Over 90 hz
  • Supply Voltage 10 to 30 V DC
  • Output PNP
  • Output State NO
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 8 mA
  • Operating Modes Dark Operated, Through Beam
  • Housing M12 × 1
  • Housing Material Nickel Plated Brass
  • Connection M12 Plug
  • Pin Count 4
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +50 °C
