Telco SMR3215APT3

SKU: SMR3215APT3
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$191.30

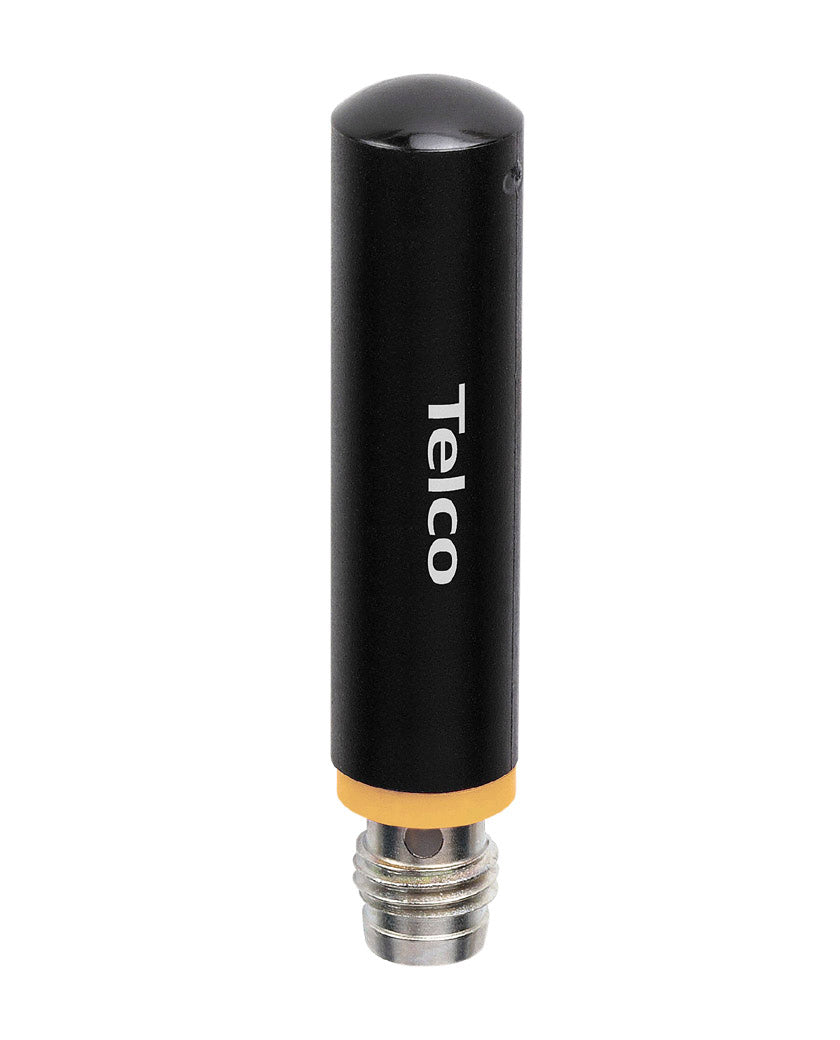

RECEIVER, PLASTIC, PNP, NC, 3P M8 QD
  • Sensing Range 0–15 m
  • Ambient Light Immunity 35,000 lux at 5° incidence
  • Hysteresis Approximately 30%
  • Response Time <13 ms on / <6 ms off
  • Switching Frequency Over 40 hz
  • Supply Voltage 10 to 30 V DC
  • Output PNP
  • Output State NC
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 8 mA
  • Operating Modes Light Operated, Through Beam
  • Housing 10 mm Cylindrical
  • Housing Material Polycarbonate
  • Connection M8 Plug
  • Pin Count 3
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +50 °C
