Telco Sensors

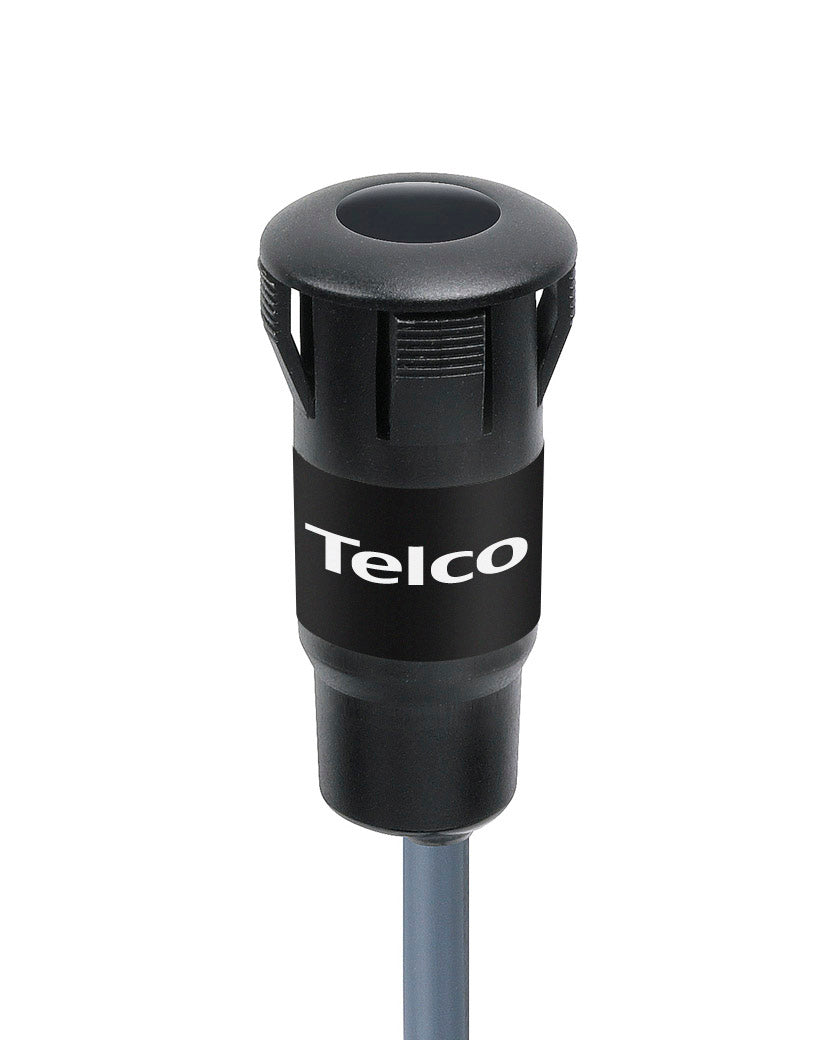

Telco SMR3206S305

SKU: SMR3206S305
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$158.70

RECEIVER, PLASTIC, PNP, NC, LIGHT OPERATED, SNAP TYPE, 5M CABLE
  • Sensing Range 0–6 m
  • Ambient Light Immunity 35,000 lux at 5° incidence
  • Hysteresis Approximately 25%
  • Response Time <4 ms on / <6 ms off
  • Switching Frequency Over 90 hz
  • Supply Voltage 10 to 30 V DC
  • Output PNP
  • Output State NC
  • Maximum Load Current 100 mA
  • Maximum Current Consumption 8 mA
  • Operating Modes Light Operated, Through Beam
  • Housing 12.7 mm Snap
  • Housing Material Polycarbonate
  • Connection Integral Cable
  • Cable Length 5 m
  • Cable Material PVC
  • Front Lens Material Polycarbonate
  • Protection Rating IP67
  • Operating Temperature Range −20 to +50 °C
