Telco SMPF7600TSJ

SKU: SMPF7600TSJ
Product Normally Ships in 5-7 Business Days
Call Us for Volume Discount Availability 704.519.4661
$275.96

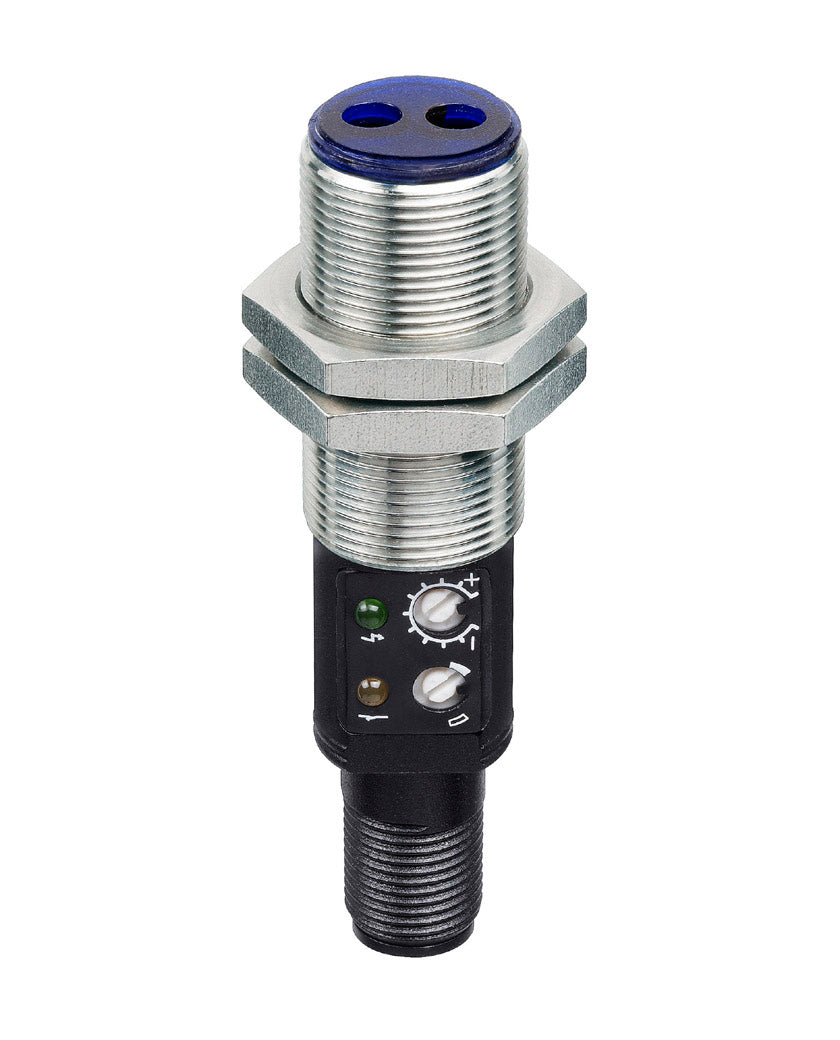

FIBER SENSOR, STAINLESS, DC, NPN/PNP, 4P M12 QD
  • Sensing Range Fiber Dependent
  • Light Source Infrared 880 nm
  • Response Time 2 ms
  • Switching Frequency 250 hz
  • Supply Voltage 10 to 30 V DC
  • Output NPN, PNP
  • Output State NC, NO
  • Maximum Load Current 120 mA
  • Controls Light Dark Selection, Sensitivity Adjustment
  • Operating Modes Dark Operated, Light Operated, Selectable
  • Housing M18 × 1
  • Housing Material Stainless Steel
  • Connection M12 Plug
  • Pin Count 4
  • Protection Rating IP67
  • Operating Temperature Range −20 to +60 °C
