SOG2 Slide Open Gate

SKU: SOG2
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

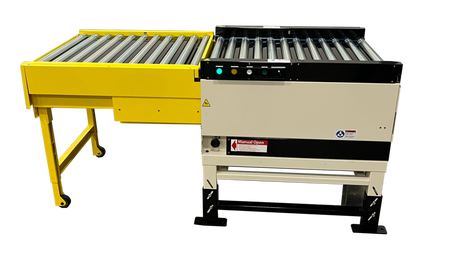

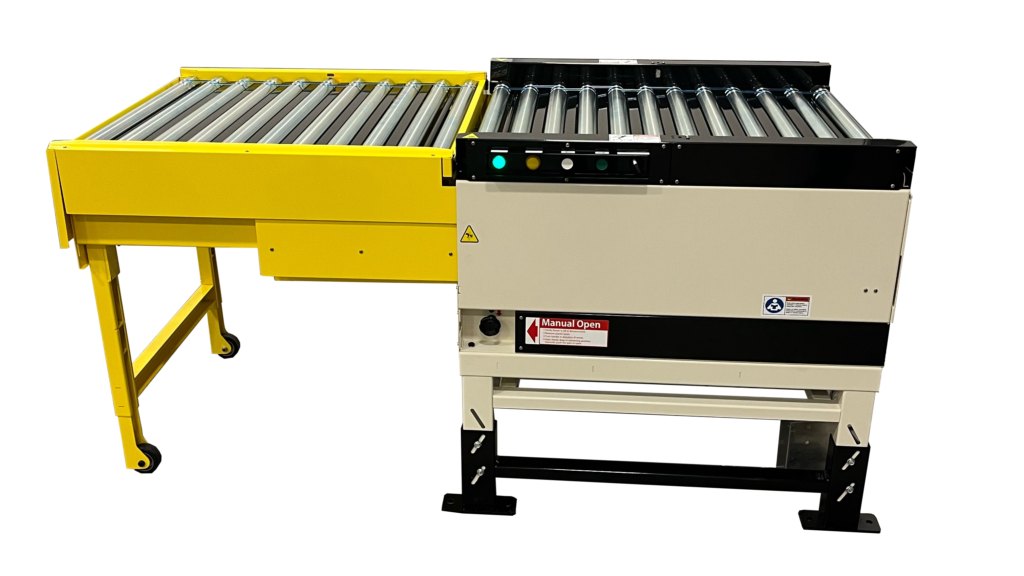

The SOG2 is a 24V DC motorized slide open gate module that integrates MDR-based conveyor transfer with a power-operated gate — allowing personnel access to a conveyor line at the push of a button. With 2 motors controlling both transfer and gate movement, the SOG2 eliminates the need for manual gate operation while maintaining full conveyor functionality.

Manual activation is available in the event of a power outage. Compatible with Rockwell Automation controls for increased customization, and available in 8 widths and 3 height ranges to match existing conveyor TOR (top of roller) heights.

Key Features

  • 24V DC — safe, low-voltage operation
  • 2-motor design — controls both conveyor transfer and gate
  • Push-button gate operation for convenient personnel access
  • Manual activation available during power outage
  • MDR-based transfer — no pneumatics
  • Compatible with Rockwell Automation controls
  • 8 width options; 3 height ranges to match TOR
  • Minimum package size: 8.9” (225 mm) x 8.9” (225 mm)

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C)
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases — indoor installation
  • Vibration: below 0.5G

Applicable Driver Cards

  • (1) IB-E03B Ethernet/IP controller per module
    PNP: IB-E03BP  |  NPN: IB-E03BN
  • (1) HBS-202-F-MD1 driver card per module
    PNP: HBS-202-FP-MD1  |  NPN: HBS-202-FN-MD1

Basic Specifications

  • Roller diameter: (2) 48.6 mm
  • Line speed: 200 FPM
  • Power voltage: 24V DC
  • Maximum load: 30 kg (66 lbs)

Available Widths

Model BF Width Max Package
W366 15” (381 mm) 10.5” x 10.5”
W391 16” (406 mm) 11.5” x 11.5”
W442 18” (457 mm) 13.5” x 13.5”
W493 20” (508 mm) 15.5” x 15.5”
W544 22” (559 mm) 17.5” x 17.5”
W595 24” (610 mm) 19.5” x 19.5”
W696 28” (711 mm) 23.5” x 23.5”
W747 30” (762 mm) 25.5” x 25.5”

Height Options (TOR)

Model TOR Range
H0 24” – 26”
H1 27” – 31”
H2 31” – 36”
