RR-46-90-M-V Medium Duty Flange Output Rotary Actuator
Call Us for Volume Discount Availability 704.519.4661
Regular price
$2,505.00
Couldn't load pickup availability

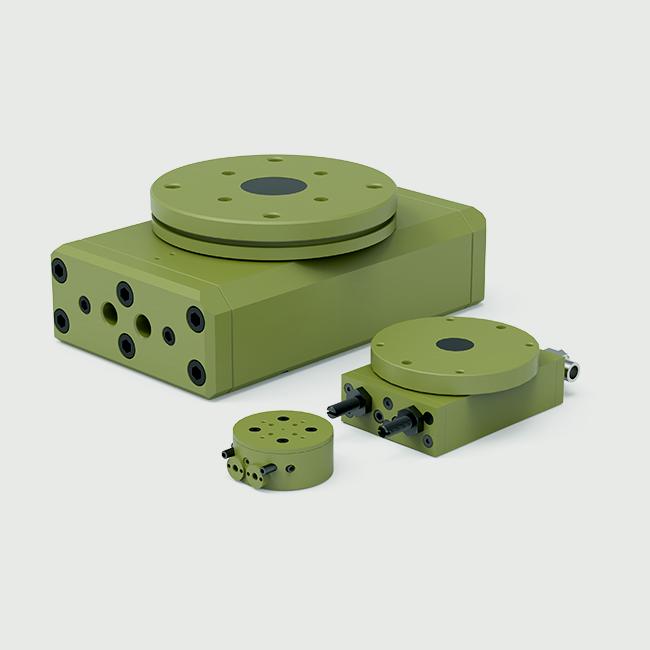

RR-46 Medium-Duty Rotary Actuator
Medium-duty rotary actuator with higher capacity and torque for tight space applications. Direct-mount payload flange, preloaded bearings for repeatability, zero-backlash dowel-pin location, adjustable hard-stops and shock absorbers, with options for rotary manifold and mid-stop. Features per datasheet p.7.
| Specification | Value |
|---|---|
| Maximum Payload | 6.8 kg [15 lb] |
| Maximum Payload Inertia | 0.01096 N·m·s² [0.0970 in-lb·s²] |
| Maximum Rotation | 180° |
| Maximum Torque (mid-stroke @ 100 psi / 7 bar) | 14 N·m [122 lb-in] |
| Maximum Torque (end-stroke @ 100 psi / 7 bar) | 7 N·m [61 lb-in] |
| Weight (base unit) | 2.3 kg [5 lb] |
| Weight adder — Mid-Position Stop | 0.19 kg [0.42 lb] |
| Weight adder — Rotary Manifold | 0.17 kg [0.38 lb] |
| Pressure Range | 3–7 bar [40–100 psi] |
| Ingress Protection | IP55 |
| Displacement (180°) | 63.18 cm³ [3.855 in³] |
| Displacement of Mid-Position Stop | 35.95 cm³ [2.194 in³] |
| Temperature Range (Buna-N seals) | 0~66 °C [32~150 °F] |
| Actuation Time (180° @ 100 psi) | 0.41 s |
| Actuation Time (90° @ 100 psi) | 0.36 s |
| End-stop Repeatability | ±0.02° |
| Mid-stop Repeatability | ±0.5° |
| End-stop Adjustability | 60° |
| Over-travel (each end) | 4° |
| Valve required to actuate | 4-way, 2-position |
| Valve required to actuate Mid-Stop | 3-way, 2-position |
Specs from datasheet p.8 (RR-46). :contentReference[oaicite:1]{index=1}
