MC3350M-3 Self Compensating Industrial Shock Absorber (metric)
MC3350M-3 Self Compensating Industrial Shock Absorber (metric)
ACE Controls

MC3350M-3 Self Compensating Industrial Shock Absorber (metric)

ACE Part #: 216-0015
Item is In Stock and Ready to Ship
Call Us for Volume Discount Availability 704.519.4661
$169.45
  • Item # MC3350M-3
  • Energy Capacity lbs/cycle 2,920
  • Energy Capacity lbs/h 760,000
  • Effective Weight Min lbs 460
  • Effective Weight Max lbs 1,840

Self-Compensating
Energy capacity 2,920 in-lbs/cycle
Stroke 1.91 inch

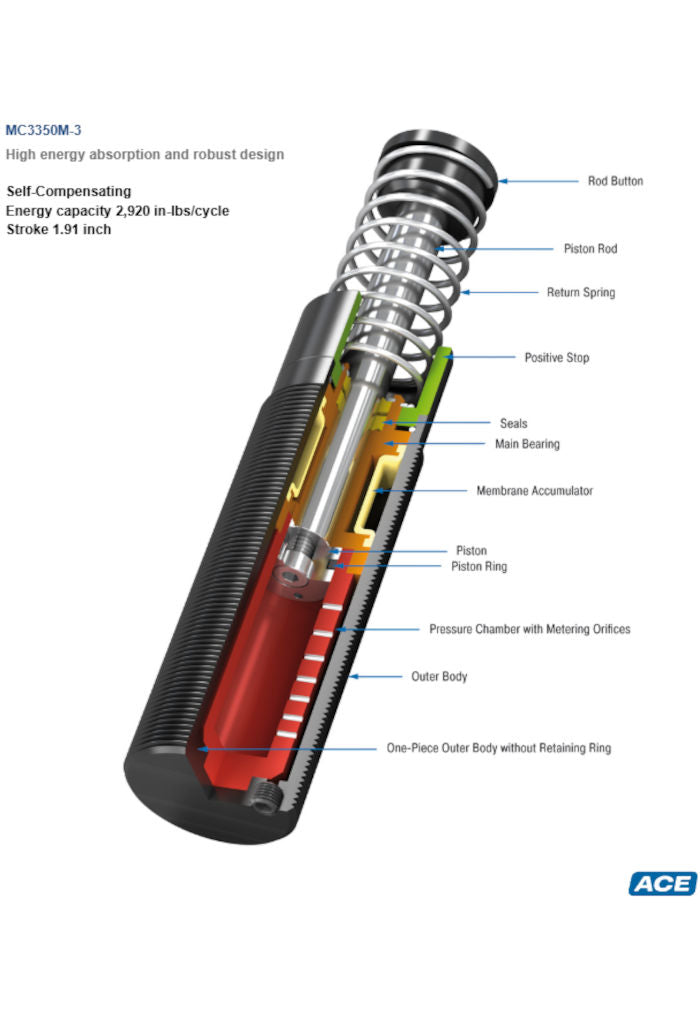

The latest damper technology: The combination of the latest sealing technology, annealed guide bearing and integrated positive stop make these self-compensating shock absorbers from ACE'S MAGNUM range so successful. After all, users benefit from the longer service life of the products, even in the most difficult environments. A continuous outer thread and extensive accessories make their contribution to the success story of the MC33 to MC64.

High energy absorption in a compact design and a wide damping range lead to huge advantages in practice. Alongside generally more compact designs, these small yet very powerful absorbers enable full use of the machine's performance. Self-compensating shock absorbers react to changing energy conditions, without adjustment.
