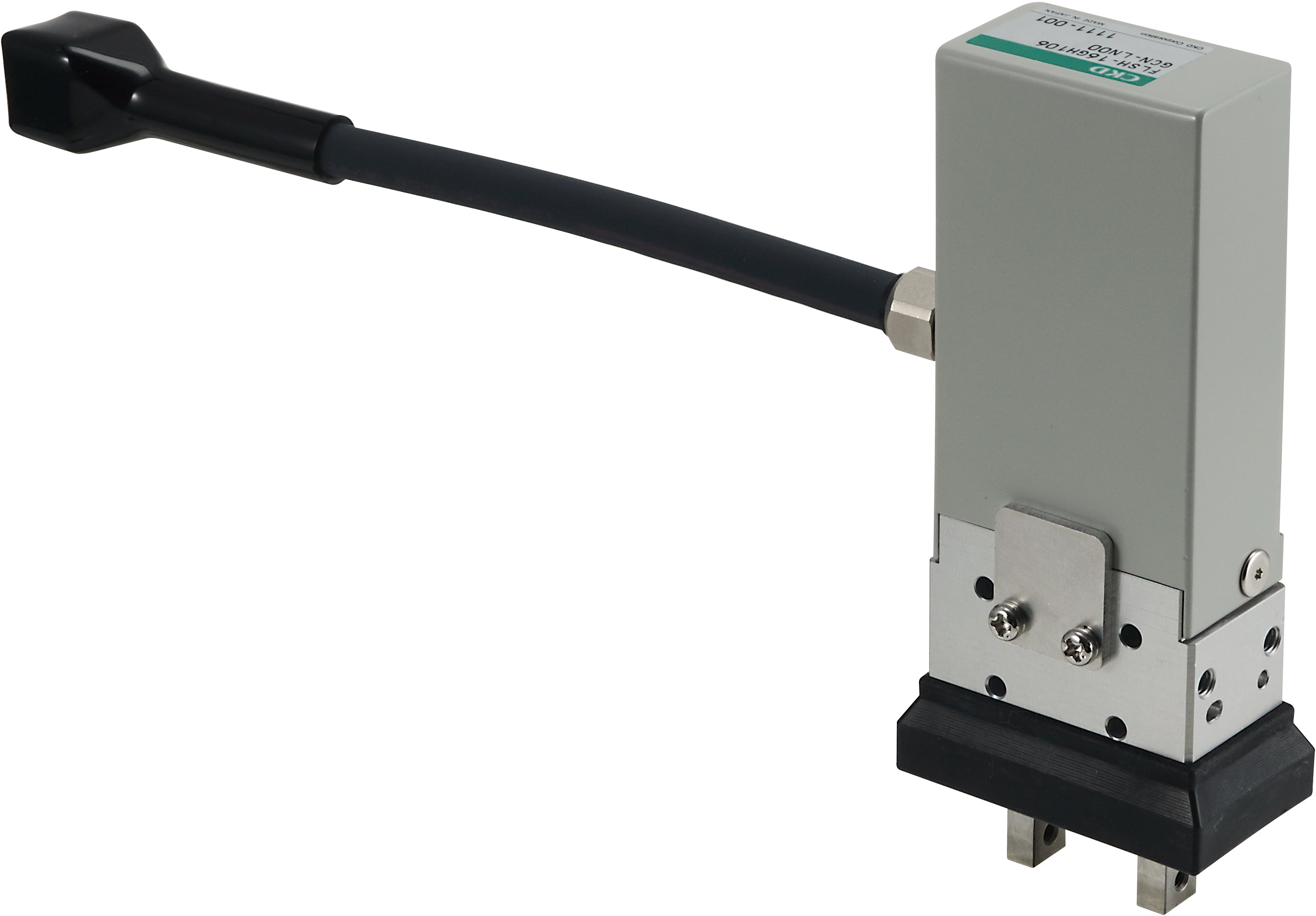

FLSH-16GH112NC3-LR03 — CKD FLSH Electric Actuator, 2-Finger Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,201.91
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, 2-finger gripper, size 16, 12 mm stroke, through hole finger, case outlet left, movable 3m
| Model Number | FLSH-16GH112NC3-LR03 |
| Series | FLSH |
| Size | 16 |
| Stroke | 12 |
| Finger Type | Through Hole Finger |
| Cable Outlet | Case Outlet Left |
| Relay Cable | Movable 3m |
| Encoder | Incremental encoder |
| Compatible Controller | ECMG/ECG-B |
| Weight | 0.77 kg |
| Dimensions (V × W × H) | 124.8 × 53 × 23.6 mm |
