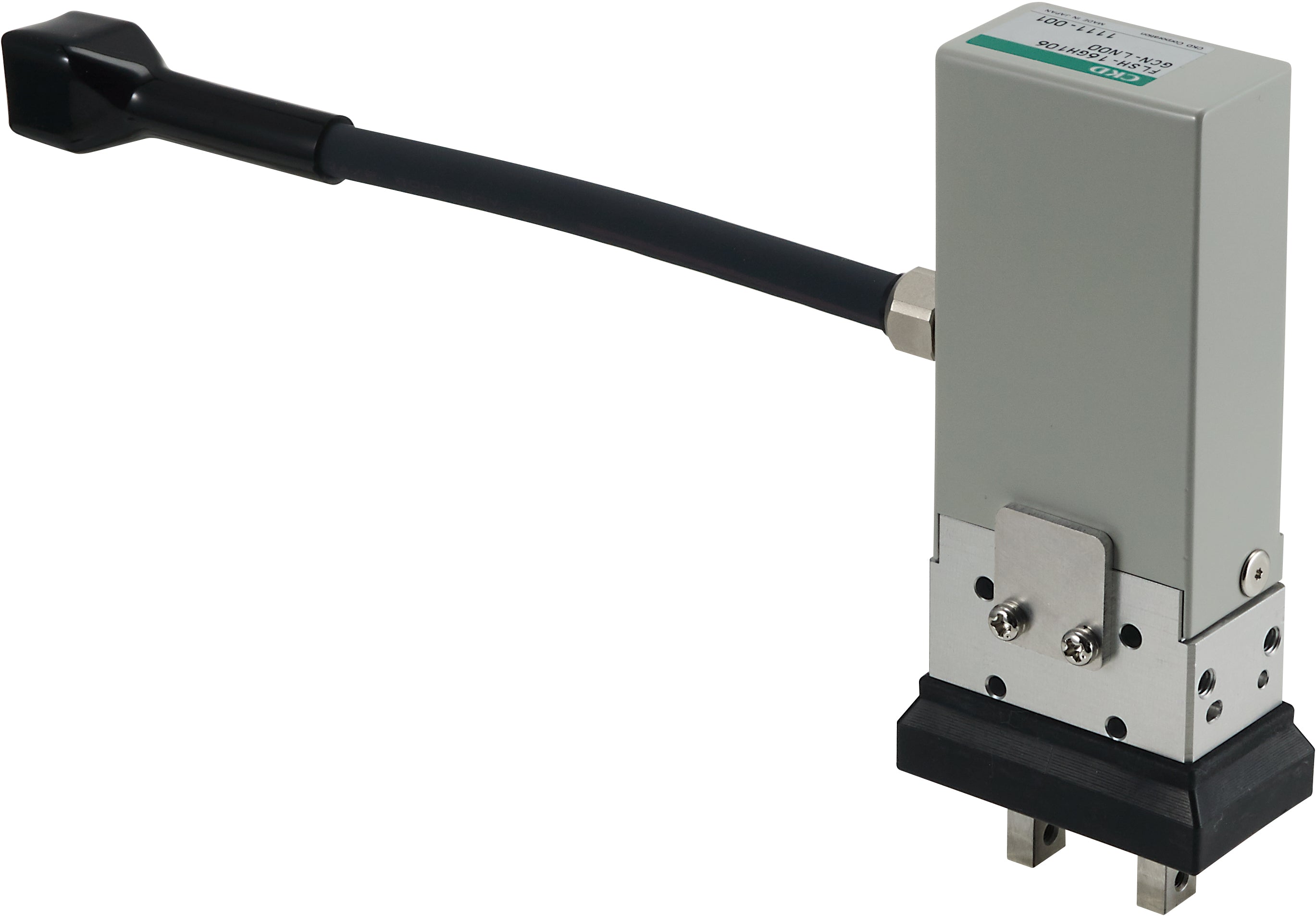

FLSH-16GH112NC2-SS05 — CKD FLSH Electric Actuator, 2-Finger Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,153.74
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, 2-finger gripper, size 16, 12 mm stroke, side tapered hole finger, direct outlet side, fixing 5m
| Model Number | FLSH-16GH112NC2-SS05 |
| Series | FLSH |
| Size | 16 |
| Stroke | 12 |
| Finger Type | Side Tapered Hole Finger |
| Cable Outlet | Direct Outlet Side |
| Relay Cable | Fixing 5m |
| Encoder | Incremental encoder |
| Compatible Controller | ECMG/ECG-B |
| Weight | 0.87 kg |
| Dimensions (V × W × H) | 109.3 × 53 × 23.6 mm |
