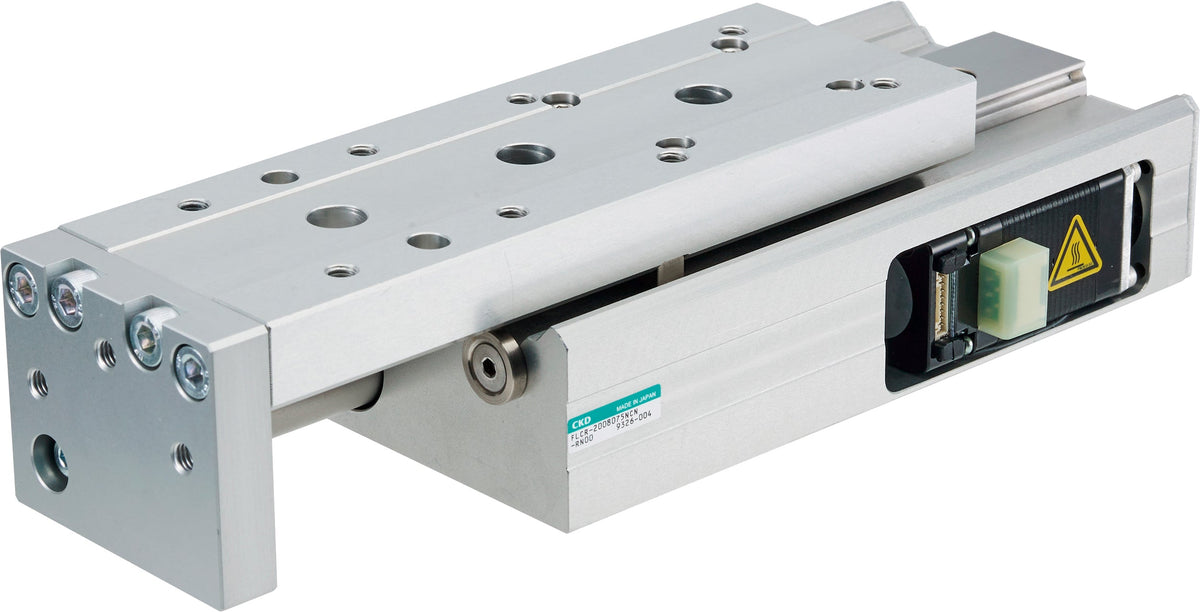

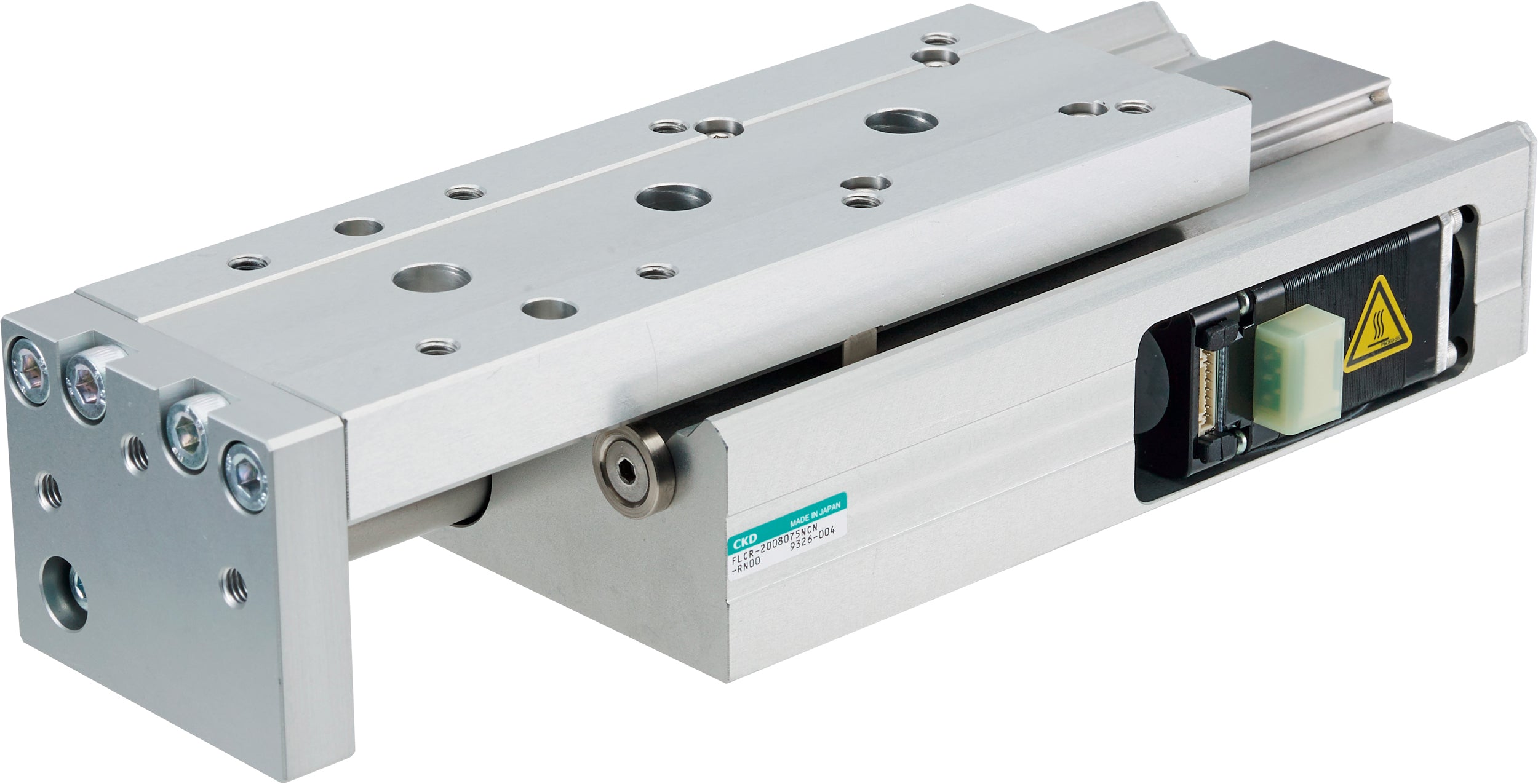

FLCR-20G02050NCN-AS03 — CKD FLCR Electric Actuator, Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,606.79
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, table type, size 20, 2 mm lead, 50 mm stroke, no brake, case outlet left, fixing 3m
| Model Number | FLCR-20G02050NCN-AS03 |
| Series | FLCR |
| Size | 20 |
| Screw Lead | 2 |
| Stroke | 50 |
| Brake | No Brake |
| Cable Outlet | Case Outlet Left |
| Relay Cable | Fixing 3m |
| Encoder | Incremental Encoder |
| Compatible Controller | ECMG/ECG-B |
| Weight | 1.8 kg |
| Dimensions (V × W × H) | 130.5 × 91.5 × 48 mm |
