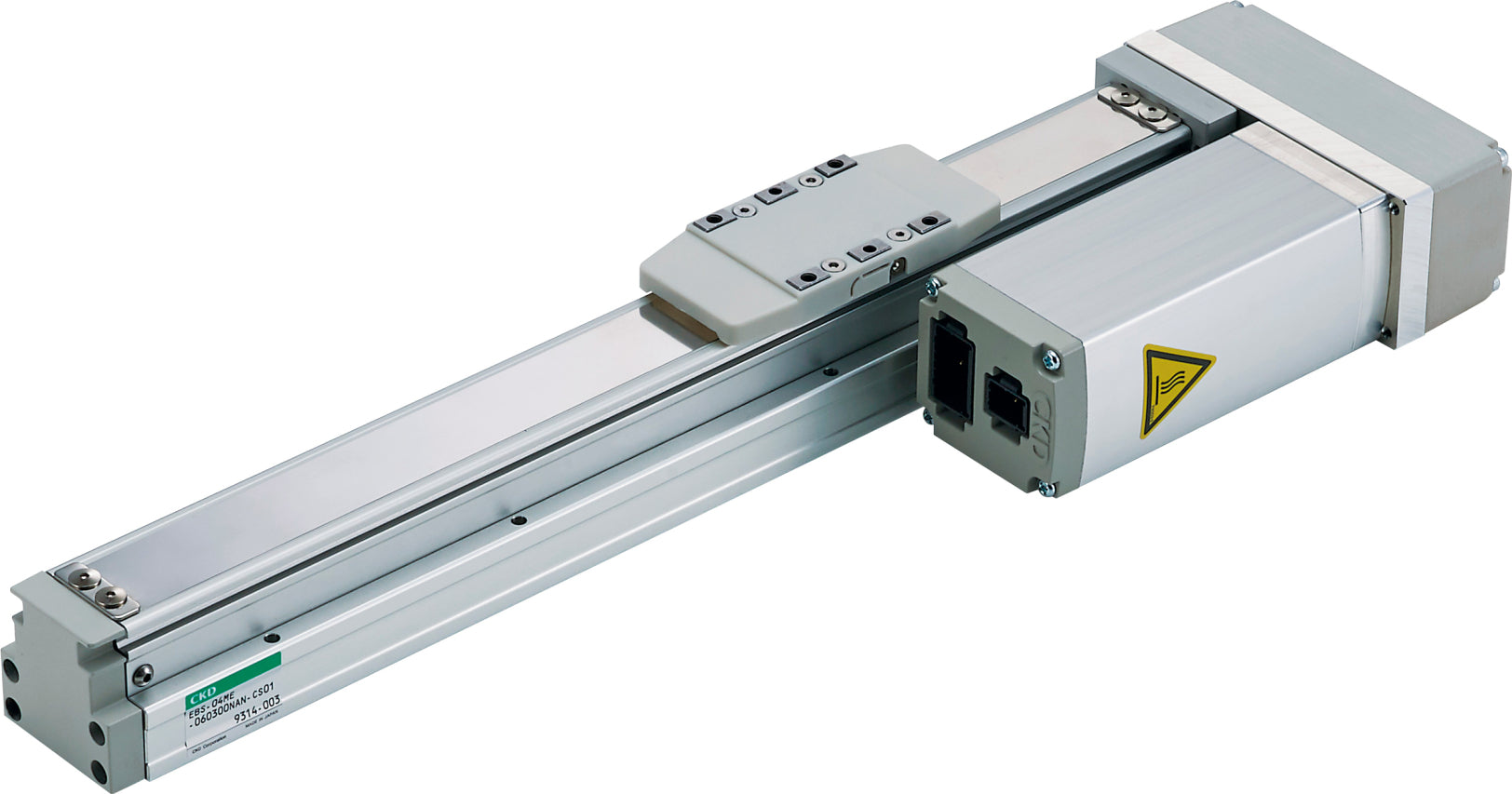

EBS-05GE-050100BBN-CN00 — CKD EBS Electric Actuator
Call Us for Volume Discount Availability 704.519.4661
Regular price
$786.34
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, 54 mm, straight mount, 5 mm lead, 100 mm stroke, with brake, connector only
| Model Number | EBS-05GE-050100BBN-CN00 |
| Series | EBS |
| Body Width | 54 |
| Motor Mounting | Straight Mount |
| Screw Lead | 5 |
| Stroke | 100 |
| Brake | With Brake |
| Relay Cable | Connector Only |
| Encoder | Battery-less absolute encoder (for ECMG/ECG) |
| Weight | 3.6 kg |
| Dimensions (V × W × H) | 60.0 × 52.5 × 493.0 mm |
