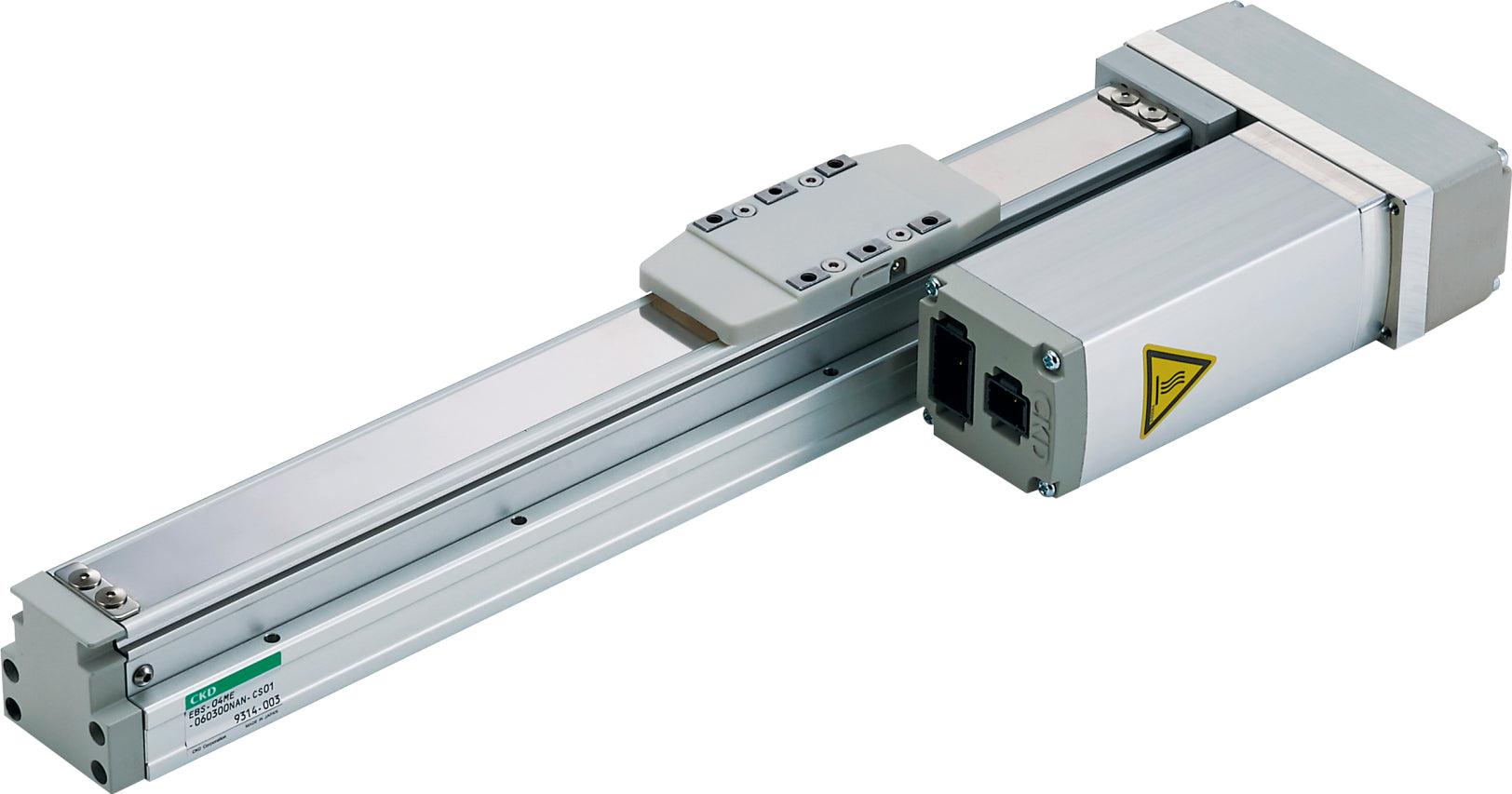

EBS-04GE-120100BBN-CS05 — CKD EBS Electric Actuator
Call Us for Volume Discount Availability 704.519.4661
Regular price
$756.49
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, 44 mm, straight mount, 12 mm lead, 100 mm stroke, with brake, fixing 5m
| Model Number | EBS-04GE-120100BBN-CS05 |
| Series | EBS |
| Body Width | 44 |
| Motor Mounting | Straight Mount |
| Screw Lead | 12 |
| Stroke | 100 |
| Brake | With Brake |
| Relay Cable | Fixing 5m |
| Encoder | Battery-less absolute encoder (for ECMG/ECG) |
| Weight | 2.95 kg |
| Dimensions (V × W × H) | 52.0 × 42.6 × 472.0 mm |
