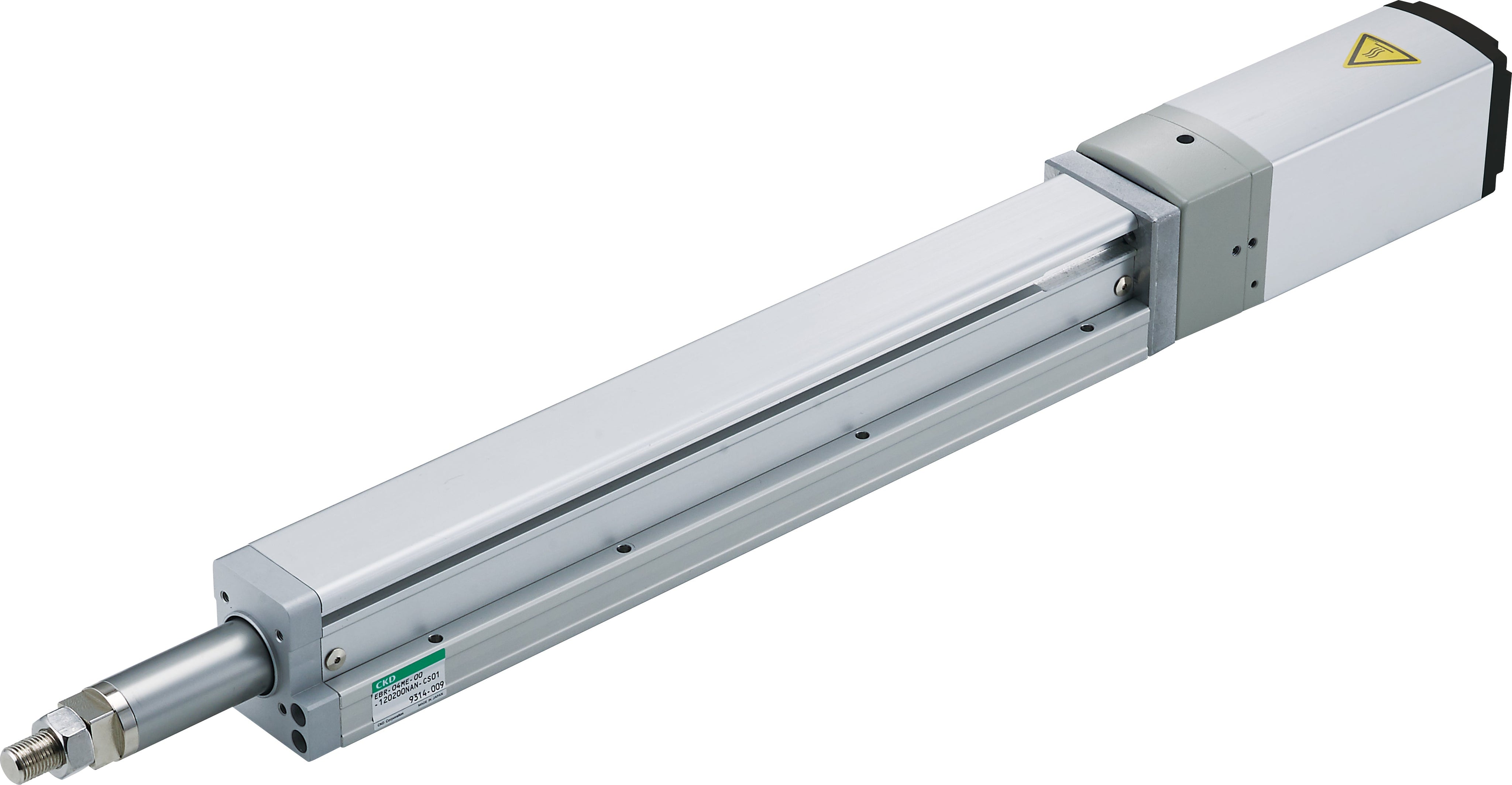

EBR-05GR-00-050400NBN-CR05 — CKD EBR Electric Actuator, Rod with Built-in Guide
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,223.51
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator with built-in guide, 54 mm, right mount, basic finger, 5 mm lead, 400 mm stroke, no brake, movable 5m
| Model Number | EBR-05GR-00-050400NBN-CR05 |
| Series | EBR |
| Body Width | 54 |
| Motor Mounting | Right Mount |
| Mounting | Basic Finger |
| Screw Lead | 5 |
| Stroke | 400 |
| Brake | No Brake |
| Relay Cable | Movable 5m |
| Encoder | Battery-less absolute encoder (for ECMG/ECG) |
| Compatible Controller | ECMG/ECG |
| Weight | 4.3 kg |
| Dimensions (V × W × H) | 55.2 × 121.0 × 656.5 mm |
