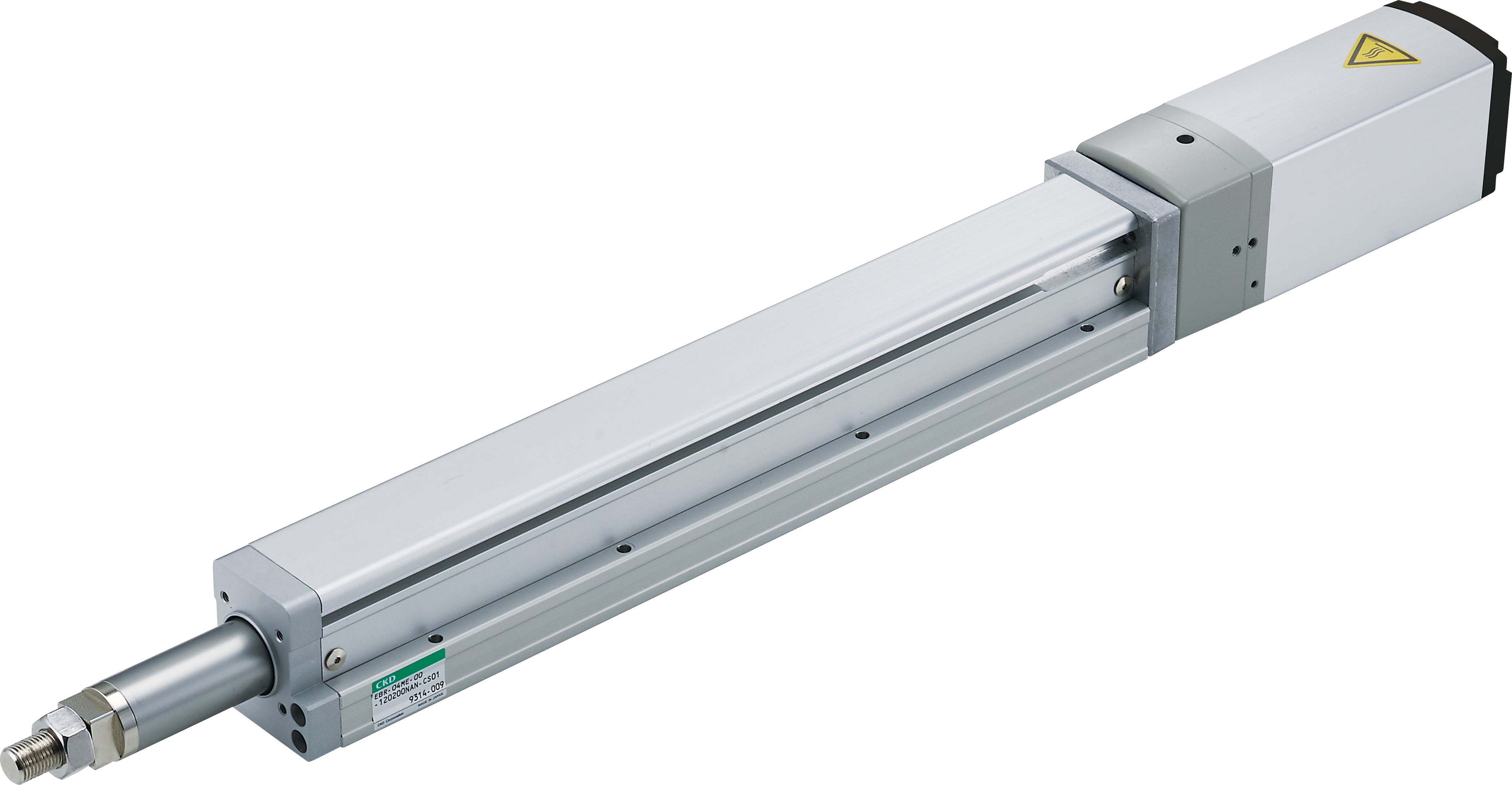

EBR-05GL-00-050300BBN-CN00 — CKD EBR Electric Actuator, Rod with Built-in Guide
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,216.91
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator with built-in guide, 54 mm, left mount, basic finger, 5 mm lead, 300 mm stroke, with brake, connector only
| Model Number | EBR-05GL-00-050300BBN-CN00 |
| Series | EBR |
| Body Width | 54 |
| Motor Mounting | Left Mount |
| Mounting | Basic Finger |
| Screw Lead | 5 |
| Stroke | 300 |
| Brake | With Brake |
| Relay Cable | Connector Only |
| Encoder | Battery-less absolute encoder (for ECMG/ECG) |
| Compatible Controller | ECMG/ECG |
| Weight | 4.3 kg |
| Dimensions (V × W × H) | 55.2 × 121.0 × 556.5 mm |
