Del-Tron VSM6-25-D VSM6 High Precision Positioning Stage
Call Us for Volume Discount Availability 704.519.4661
Regular price
$798.00
Couldn't load pickup availability
| Model | VSM6-25-D |
| Family | VSM6 |
| Type | CROSSED ROLLER RAIL |
| Thread | METRIC |
| Work Surface | 89 x 152 |
| Drive | CENTER |
| Travel | 25.0 |

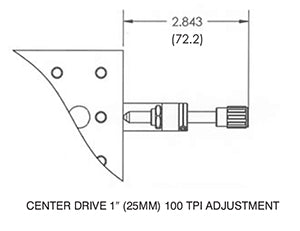

| Actuator | 100 TPI ADJUSTMENT |
| Posi-Lock | NO |
| Metric | Specification |
|---|---|
| Load Capacity (N) | 71 |
| Moment M1 (N·cm) | 8.57 |
| Moment M2 (N·cm) | 36.74 |
| Moment M3 (N·cm) | 38.58 |
| Accuracy (mm/mm travel) | 0.0025 |
| Repeatability (mm) | 0.0025 |
| Coefficient of Friction | 0.002 |
