Del-Tron VSM3-12.5-T-PL VSM3 High Precision Positioning Stage
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,337.00
Couldn't load pickup availability
| Model | VSM3-12.5-T-PL |
| Family | VSM3 |
| Type | CROSSED ROLLER RAIL |
| Thread | METRIC |
| Work Surface | 89 X 89 |

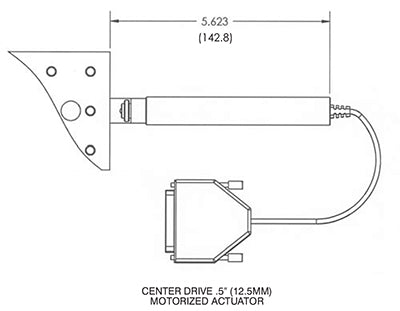

| Drive | CENTER |
| Travel | 12.5 |
| Actuator | MOTORIZED |
| Posi-Lock | YES |
| Metric | Specification |
|---|---|
| Load Capacity (N) | 52 |
| Moment M1 (N·cm) | 4.18 |
| Moment M2 (N·cm) | 11.27 |
| Moment M3 (N·cm) | 11.83 |
| Accuracy (mm/mm travel) | 0.0025 |
| Repeatability (mm) | 0.0025 |
| Coefficient of Friction | 0.002 |
