Del-Tron VS6-2-D VS6 High Precision Positioning Stage
Call Us for Volume Discount Availability 704.519.4661
Regular price
$806.00
Couldn't load pickup availability
| Model | VS6-2-D |
| Family | VS6 |
| Type | CROSSED ROLLER RAIL |
| Thread | INCH |
| Work Surface | 3.5 X 6 |

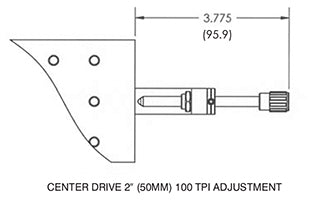

| Drive | CENTER |
| Travel | 2.0 |
| Actuator | 100 TPI ADJUSTMENT |
| Posi-Lock | NO |
| Metric | Specification |
|---|---|
| Load Capacity (lb) | 158 |
| Moment M1 (lb-in) | 75.84 |
| Moment M2 (lb-in) | 325.12 |
| Moment M3 (lb-in) | 341.44 |
| Accuracy (in/in travel) | 0.0001 |
| Repeatability (in) | 0.0001 |
| Coefficient of Friction | 0.002 |
