Del-Tron Precision DL33B-DW-60-SV-C-PH DL33B Series Linear Actuators
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,788.00
Couldn't load pickup availability

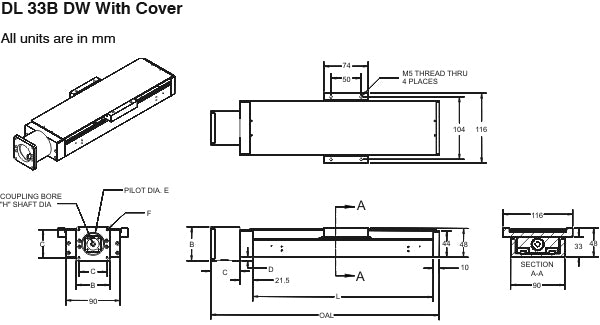

All dimensions in millimeters unless otherwise specified
Servo Motor (SV) Yaskawa SGMPH
| Model # | DL33B-DW-60-SV-C-PH |
|---|---|
| OAL | 234.7 |
| L | 150.0 |
| A | 53.2 |
| B | 60.0 |
| C | 49.5 |
| D | 8.9 |
| E | 50.1 |
Performance Specifications
| Load Capacity (N) | 900 |
|---|---|
| Positioning Accuracy (µm) | 100 |
| Coefficient of Friction | 0.01 |
| Positional Repeatability (µm) | 10 |
| Running Parallelism (µm) | 25 |
| Backlash (µm) | 20 |
| Linear Speed (mm/sec) | 200 |
| Sensor | Photo Sensors SUNX PMY54 |
