Del-Tron Precision DL26B-DW-120-ST-C DL26B Series Linear Actuators
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,360.00
Couldn't load pickup availability

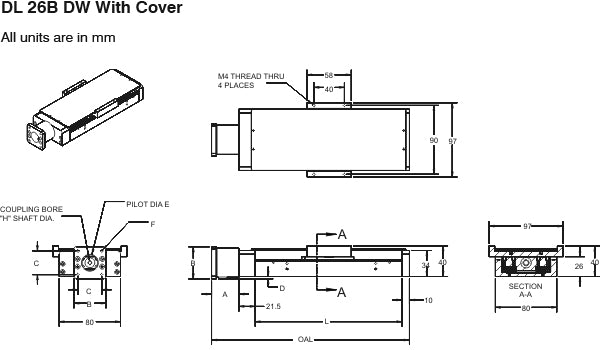

All dimensions in millimeters unless otherwise specified
Stepper Motor (Oriental PK243 (NEMA 17))
| Model # | DL26B-DW-120-ST-C |
|---|---|
| OAL | 258.7 |
| L | 191.5 |
| N | 3 |
| A | 35.7 |
| B | 42.0 |
| C | 31.0 |
| D | 3.0 |
| E | 22.0 |
Performance Specifications
| Load Capacity (N) | 600 |
|---|---|
| Positioning Accuracy (µm) | 90 |
| Coefficient of Friction | 0.01 |
| Positional Repeatability (µm) | 10 |
| Running Parallelism (µm) | 25 |
| Backlash (µm) | 20 |
| Linear Speed (mm/sec) | 200 |
| Sensor | None |
