Del-Tron NBT-3155SSA Crossed Roller Slide Table
Call Us for Volume Discount Availability 704.519.4661
Regular price
$665.00
Couldn't load pickup availability
NBT-3155SSA Specifications

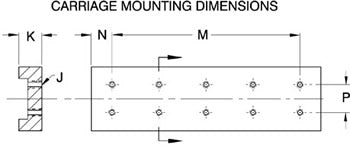

| Mounting Dimensions Carriage | |
|---|---|
| Spacing N | 1.083 in |
| Spacing P | 0.984 in |
| Thread J | 10-32 |
| Depth K | 0.413 in |
| Base | |
| Spacing R | 0.394 in |
| Spacing S | 1.575 in |
| C-Bore D | 0.328 in |
| C-Bore d | 0.197 in |
| Depth h | .205 in |
| Profile Dimensions | |
| Height A +/- .005 (0.13) | 1.102 in |
| Width B +/- .010 (0.25) | 2.362 in |
| Base Thickness C | 0.354 in |
| Model Overview | |
|---|---|
| Model | NBT-3155SSA |
| Price ($) | 665.00 |
| Travel (in) | 3.00 |
| Load (lbs) | 477.0 |
| Length L (in) | 6.102 |

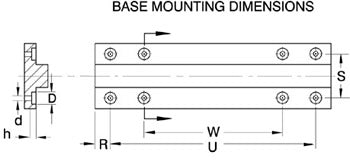

| Base Mounting Holes (counterbored) | |
| # Base Holes | 4 |
| Spacing R (in) | 0.394 |
| Spacing U (in) | 5.315 |
| Spacing W (in) | - |
| Carriage Mounting Hole (threaded) | |
| # Carr Holes | 10 |
| Spacing N (in) | 1.083 |
| Spacing M (in) | 4X.9843 |
