Del-Tron NBT-1095A-AC Crossed Roller Slide Table
Call Us for Volume Discount Availability 704.519.4661
Regular price
$504.00
Couldn't load pickup availability
NBT-1095A-AC Specifications

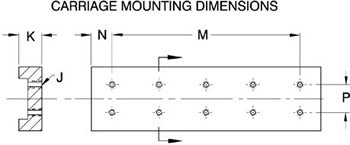

| Mounting Dimensions Carriage | |
|---|---|
| Spacing N | 0.689 in |
| Spacing P | 0.394 in |
| Thread J | 4-40 |
| Depth K | 0.177 in |

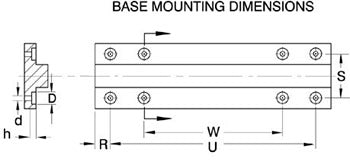

| Base | |
| Spacing R | 0.197 in |
| Spacing S | 0.866 in |
| C-Bore D | 0.198 in |
| C-Bore d | 0.125 in |
| Depth h | .125 in |
| Profile Dimensions | |
| Height A +/- .005 (0.13) | 0.590 in |
| Width B +/- .010 (0.25) | 1.181 in |
| Base Thickness C | 0.160 in |
| Model Overview | |
|---|---|
| Model | NBT-1095A-AC |
| Price ($) | 504.00 |
| Travel (in) | 1.96 |
| Load (lbs) | 161 |
| Length L (in) | 3.740 |
| Base Mounting Holes (counterbored) | |
| # Base Holes | 8 |
| Spacing R (in) | 0.197 |
| Spacing U (in) | 3.346 |
| Spacing W (in) | 2.165 |
| Carriage Mounting Hole (threaded) | |
| # Carr Holes | 10 |
| Spacing N (in) | 0.689 |
| Spacing M (in) | 4X.5906 |
