AACB18 — PM320HS Extension Cables

SKU: AACB18
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

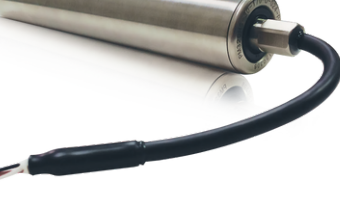

AACB18-1000 and AACB18-2000 are dedicated extension cables for the Itoh Denki PM320HS Power Moller® compact DC roller. These cables extend the PM320HS’s standard 150 mm cable lead to reach the driver card in installations where the standard length is insufficient.

The PM320HS uses a unique cable connector specific to this roller model. Standard molded extension cables (9/10/12 pin) are not compatible with the PM320HS — use AACB18 cables instead.

Available Models

  • AACB18-1000: 1,000 mm (39.37") length
  • AACB18-2000: 2,000 mm (78.74") length

Key Details

  • Dedicated extension cable for PM320HS
  • Not interchangeable with standard 9/10/12 pin molded extension cables
  • Extends the standard 150 mm PM320HS cable lead

Compatible Rollers

  • PM320HS

Compatible Driver Cards

  • CB-018N2
