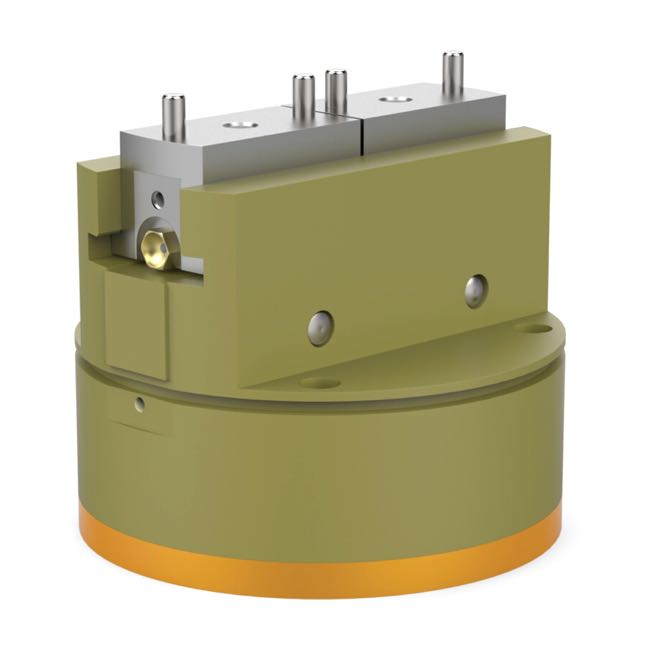

8002P-P-RE 2 Jaw Precision Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,204.00
Couldn't load pickup availability
DESTACO 8002P-P — Technical Specifications
| Specification | Value |
|---|---|
| Model | 8002P-P (Standard Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 1946 N [437 lb] |
| Grip Force (F0+R) at 0 bar | 635 N [143 lb] |
| Total Stroke | 13 mm [0.51 in] |
| Weight | 2.04 kg [4.50 lb] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 35 cm³ [2.14 in³] |
| Temperature Range (Buna-N seals) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton® seals) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.10 s |
| Repeatability | ±0.02 mm [±0.001 in] |
DESTACO 8002P-P-C — Technical Specifications
| Specification | Value |
|---|---|
| Model | 8002P-P-C (Extended Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 1256 N [282 lb] |
| Grip Force (F0+R) at 0 bar | 410 N [92 lb] |
| Total Stroke | 20 mm [0.79 in] |
| Weight | 2.04 kg [4.50 lb] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 35 cm³ [2.14 in³] |
| Temperature Range (Buna-N seals) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton® seals) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.10 s |
| Repeatability | ±0.02 mm [±0.001 in] |
