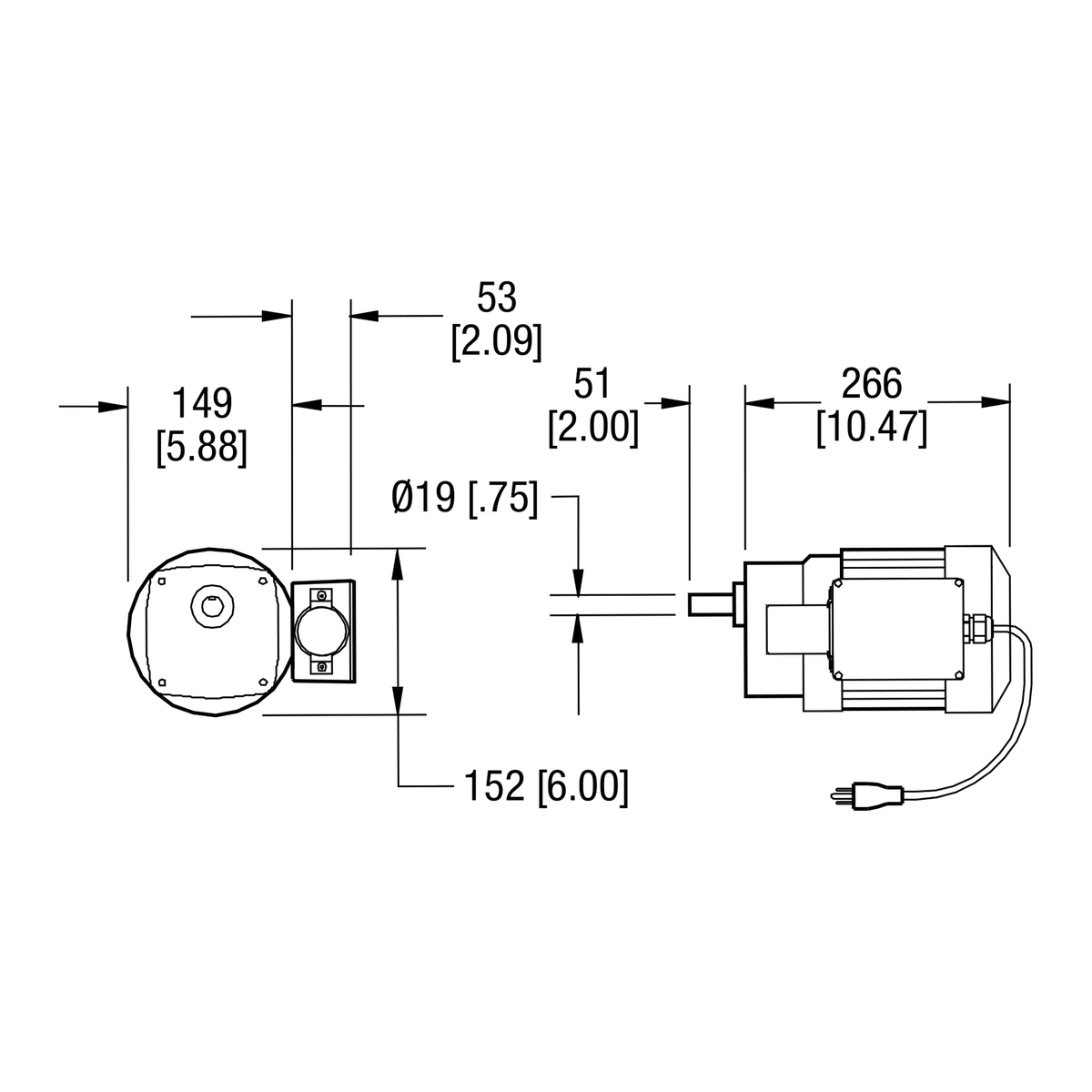

Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner

Dorner 62M180PS411FN Gearmotor, Fixed Speed, Parallel Shaft, 0.08 Hp, 10 RPM

SKU: 62M180PS411FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,007.00

Standard load parallel shaft gearmotor Fixed Speed gearmotor, .08 Hp (.06kw), 115 volt, 1 phase, 60 Hz, 10 RPM. Includes on/off switch, cord, and overload protection. Uncrated weight = 17lb (8kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type AC fixed
  • Output Speed (RPM) 10
  • Gear Ratio 180:1
  • Output Torque (in-lb) 341
  • Output Torque (Nm) 38.5
  • Motor Power (Hp) 0.08 Hp
  • Motor Power (kW) 0.06
  • Voltage 115V
  • Phase 1 phase
  • Frequency 60 Hz
  • Full Load Amps 1.2 A
  • Weight 17 lb
