Home» Conveyor Gearmotors» Dorner 62M060PS423FN Gearmotor, Fixed Speed, Parallel Shaft, 0.17 Hp, 29 RPM

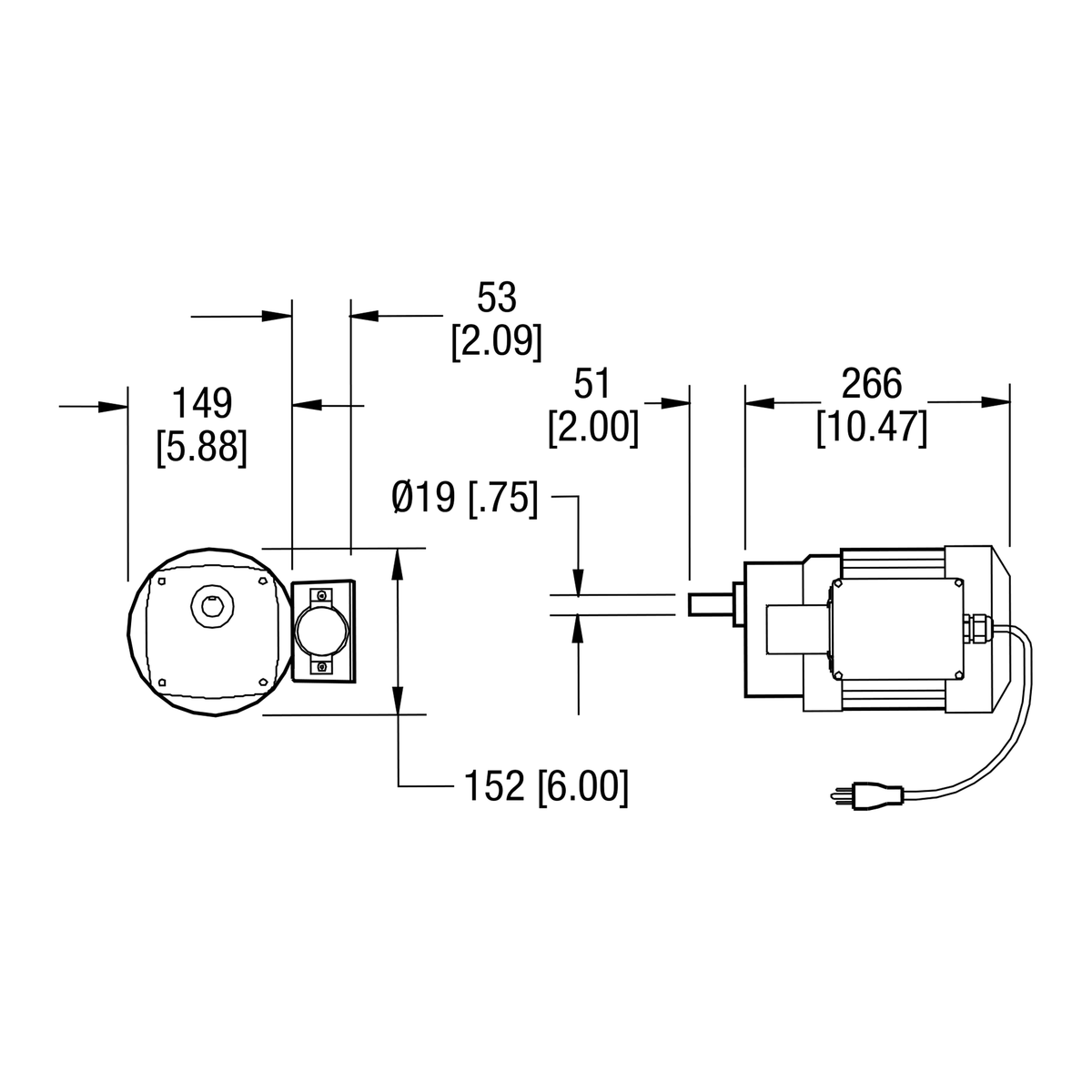

Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner Parallel Shaft NEMA gearmotor dimensional drawing
Dorner

Dorner 62M060PS423FN Gearmotor, Fixed Speed, Parallel Shaft, 0.17 Hp, 29 RPM

SKU: 62M060PS423FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$922.00

Standard load parallel shaft gearmotor Fixed Speed gearmotor, .17 Hp (.12kw), 230/460 volt, 3 phase, 60 Hz, 29 RPM. Order 3 phase starter separately. Uncrated weight = 11lb (5kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type AC fixed
  • Output Speed (RPM) 29
  • Gear Ratio 60:1
  • Output Torque (in-lb) 270
  • Output Torque (Nm) 30.5
  • Motor Power (Hp) 0.17 Hp
  • Motor Power (kW) 0.12
  • Voltage 208-230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 1.0 / 0.5 A
  • Weight 11 lb
