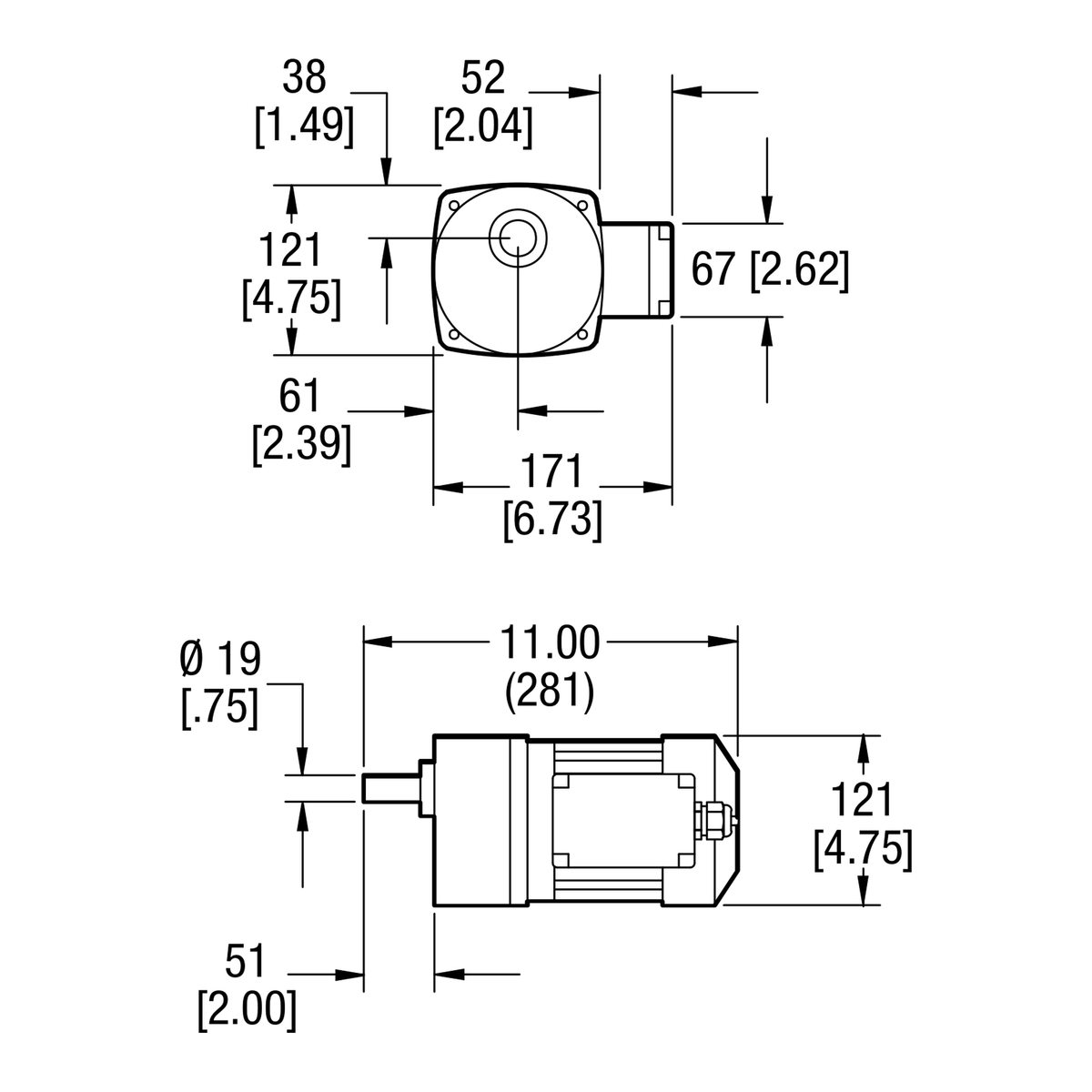

Dorner Parallel Shaft NEMA VFD Rated gearmotor dimensional drawing

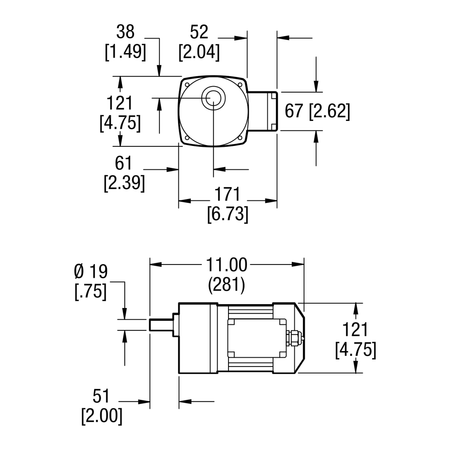

Dorner Parallel Shaft NEMA VFD Rated gearmotor dimensional drawing
Dorner

Dorner 62M060PS423EN Gearmotor, VFD Variable Speed, Parallel Shaft, 0.17 Hp, 29 RPM

SKU: 62M060PS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$922.00

Standard load parallel shaft gearmotor VFD Variable Speed gearmotor, .17 Hp (.12kw), 230/460 volt, 3 phase, 10-60 Hz, 29 RPM. Order variable speed controller separately. Uncrated weight = 11lb (5kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type AC VFD
  • Output Speed (RPM) 29
  • Min. Speed (RPM) 5
  • Gear Ratio 60:1
  • Output Torque (in-lb) 270
  • Output Torque (Nm) 30.5
  • Motor Power (Hp) 0.17 Hp
  • Motor Power (kW) 0.12
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 10-60 Hz
  • Full Load Amps 1.0 / 0.5 A
  • Weight 11 lb
