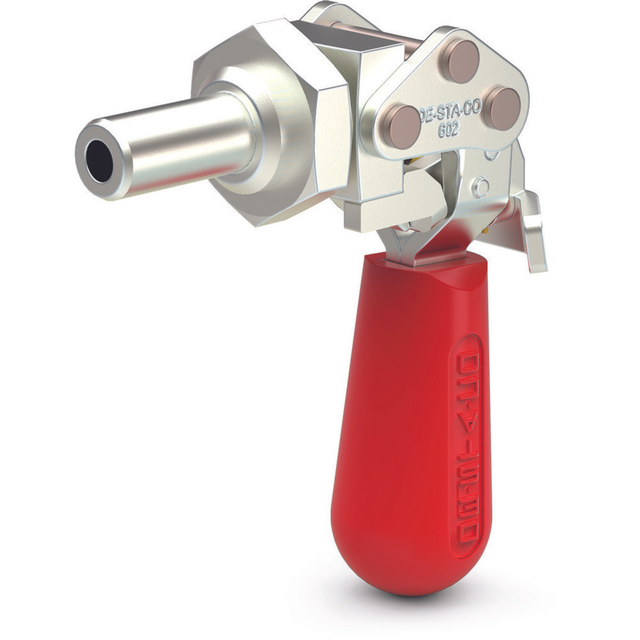

602-RSS Straight Line Action Clamp
Call Us for Volume Discount Availability 704.519.4661
Regular price
$165.00
Couldn't load pickup availability
Through-hole mounted straight line action clamp
Download Technical Data
- Versatile and compact
- Locks in both extended and retracted position
- Stainless steel
- Ergonomic handle grip supplied
- MODEL 602-SS W/TOGGLE LOCK PLUS
| Imperial or Metric Product | Imperial |
| Maximum Holding Capacity (lbsf) | 200 |
| Plunger Travel (in) | 0.75 |
| Plunger Height (in) | 0.750 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 31:1/28:1 |
| Plunger Thread | 1/4-20 |
| Available | Yes |
| Standard Material | Stainless Steel |
| Toggle Lock Plus | No |
| Base Mounting Style | Flange |
| Plunger | Round |
| Spindle (Recommended) | 202943 |
| Spindle Included? | No |
| Preferred Market | NA/SA |
| Mounting Nut (Supplied) | 602905 |
| Product Type | Standard |
| Weight (lb) | 0.11 |
| Product Series Description | Straight Line Action Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Straight-line Action Clamps |
