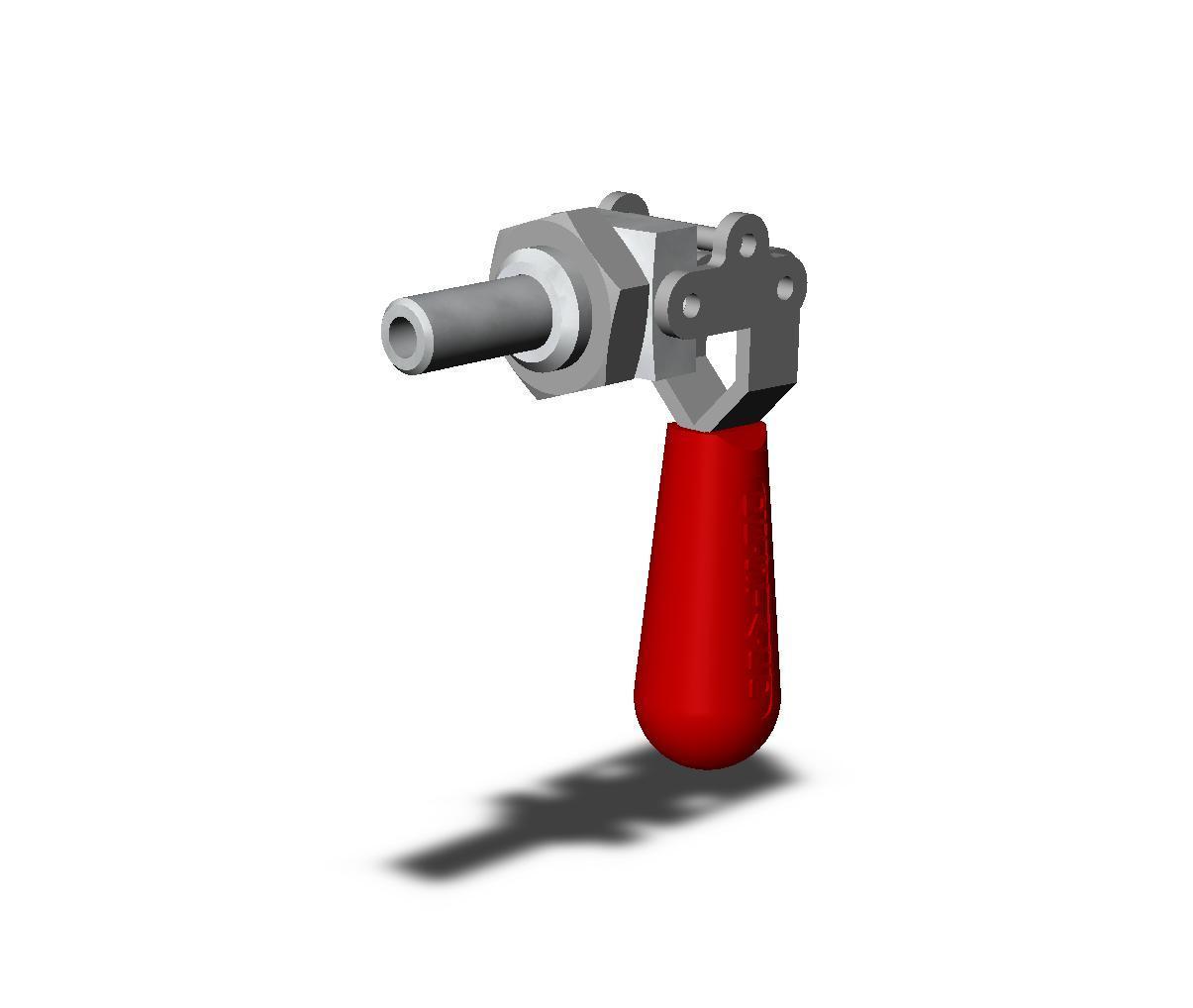

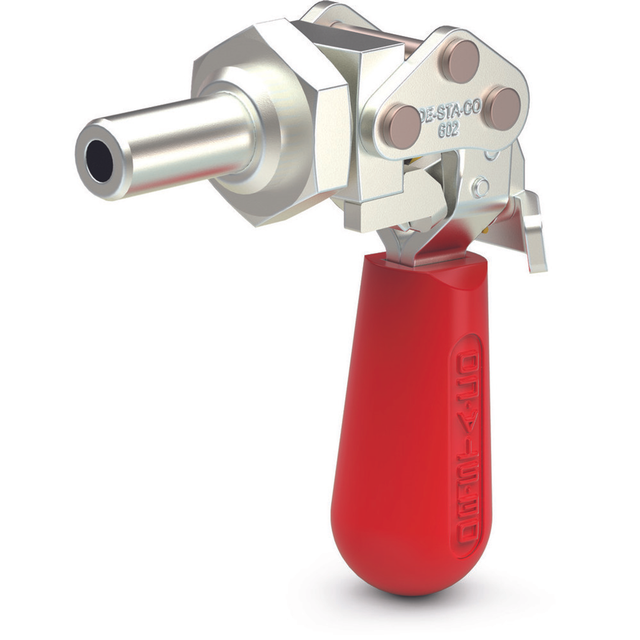

602-r Straight Line Action Clamp

Features and Specifications: MODEL 602 W/TOGGLE LOCK PLUS

•Model No.: 602-R
•Maximum Holding Capacity (N): 900
•Maximum Holding Capacity (lbsf): 200
•Plunger Travel (mm): 19.1
•Plunger Travel (in): 0.750
•Plunger Height (mm): 10.4
•Plunger Height (in): 0.410
•Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 31:1/28:1
•Plunger Travel (mm): 19.0
•Plunger Thread: 1/4-20
•Available: Yes
•Standard Material: Steel
•Toggle Lock Plus: No
•Plunger: Round
•Spindle (Recommended): 205203
•Spindle Included?: No
•Preferred Market: NA/SA
•Mounting Nut (Supplied): 602105
•Product Type: Threaded Body
•Weight: 0.05kg (0.12lb)

Additional Features:

•Versatile and compact
•Locks in both extended and retracted position
•Stainless steel
•Ergonomic handle grip supplied
