602-MMR Model 602-MM W/Toggle Lock Plus
Call Us for Volume Discount Availability 704.519.4661
Regular price
$165.00
Couldn't load pickup availability

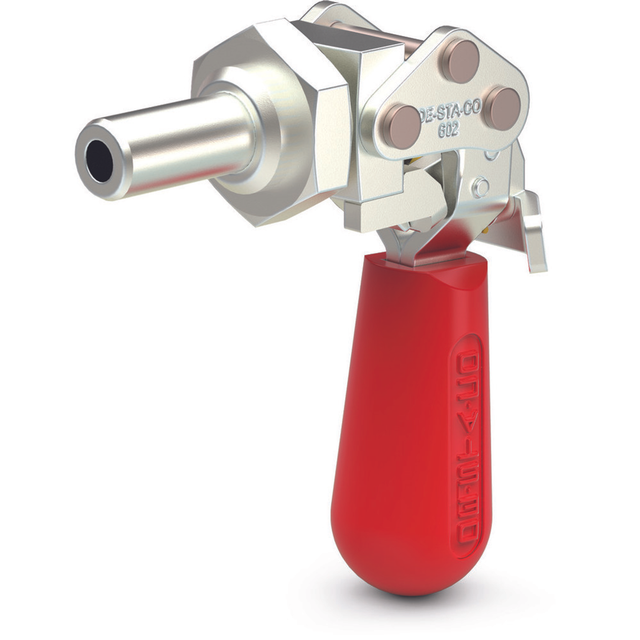

Through-hole mounted straight line action clamp
- Versatile and compact
- Locks in both extended and retracted position
- Stainless steel
- Ergonomic handle grip supplied
| Imperial or Metric Product | Metric |
| Maximum Holding Capacity (lbsf) | 200 |
| Plunger Travel (in) | 0.75 |
| Plunger Height (in) | 0.470 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 31:1/28:1 |
| Plunger Thread | M6 |
| Available | Yes |
| Standard Material | Steel |
| Toggle Lock Plus | Yes |
| Base Mounting Style | Flange |
| Plunger | Round |
| Spindle (Recommended) | 205203-M |
| Spindle Included? | No |
| Preferred Market | Global |
| Mounting Nut (Supplied) | 602105-M |
| Product Type | Threaded Body |
| Weight (lb) | 0.11 |
| Product Series Description | Straight Line Action Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Straight-line Action Clamp |
