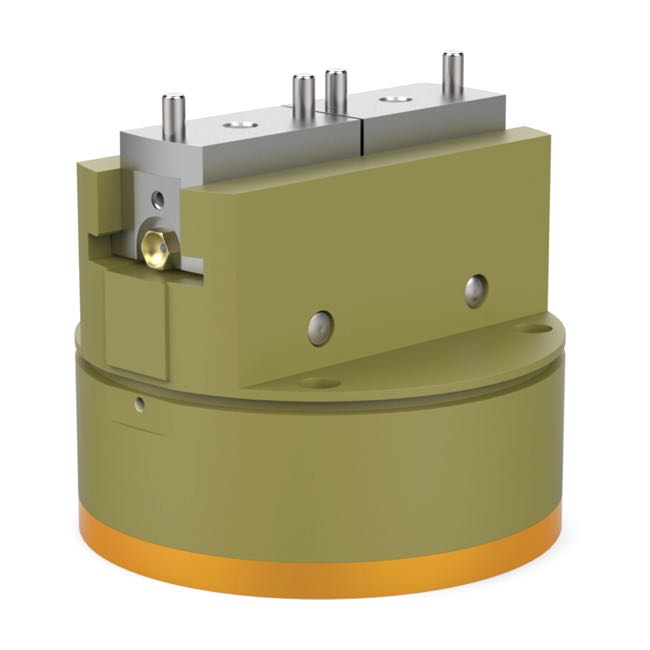

6002P-P-RI 2 Jaw Precision Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,013.00
Couldn't load pickup availability
DESTACO 6002P — Technical Specifications
| Specification | Value |
|---|---|
| Model | 6002P (Pneumatic) |
| Grip Force (F6+R) at 6 bar [87 psi], springs mid-way, L=0 | 694 N [156 lb] |
| Grip Force (F0+R) at 0 bar, springs mid-way, L=0 | 176 N [40 lb] |
| Total Stroke | 10 mm [0.39 in] |
| Weight | 0.51 kg [1.12 lb] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 12 cm³ [0.73 in³] |
| Temperature Range (Buna-N seals) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton® seals) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.07 s |
| Repeatability | ±0.02 mm [±0.001 in] |
